Cultivators


70 - 160 hp

2,5 - 3,5 m

0 - 50 cm

650 kg

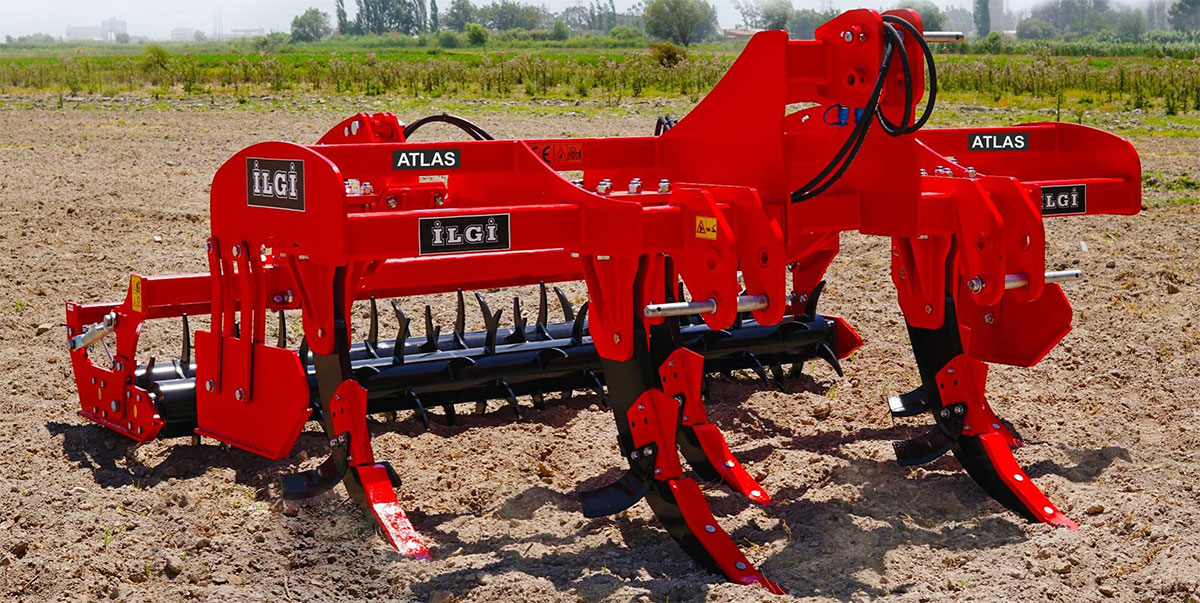

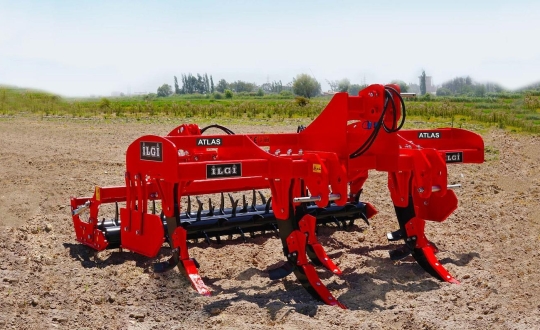

Atlas Subsoiler

ATLAS DİPKAZAN processes the soil deeply without overturning it. It is suitable for the shredding of large clods and for use in difficult soil conditions. By reaching the lower layers of the soil, it increases water and air permeability, allowing deeper penetration of plant roots, and thus increasing yield.

Advantages

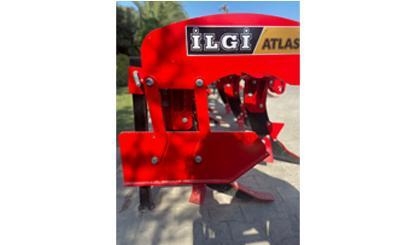

Powerful and Compact Design

Powerful and Compact Design

A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions.

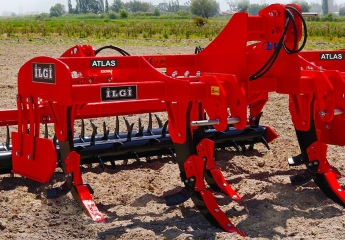

Combined Design

Combined Design

After deeply cultivating the soil with specially produced blades, a perfect surface is obtained as a result of the soil breaking, compacting, and leveling operations using a double geared roller.

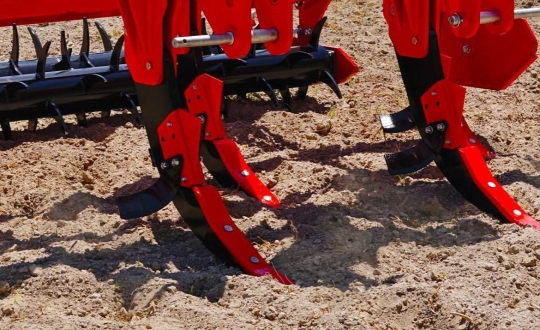

Strong Tine Structure

Strong Tine Structure

ATLAS tines are produced for maximum strength and are resistant to harsh conditions and impacts. The safety bolt shear resistance of the tines during driving is 650 kg.

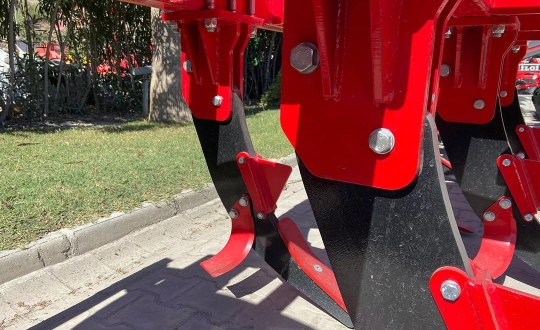

Safety Bolt for Tines

Safety Bolt for Tines

The Atlas Subsoiler offers uninterrupted driving with a load of up to 650 kg. To prevent the robust tines from being damaged while driving and to ensure uninterrupted operation, the safety bolt on each tine is activated when it suffers an impact that could damage the tines, allowing the tine to elevate from the ground and oscillate, preventing possible damage.

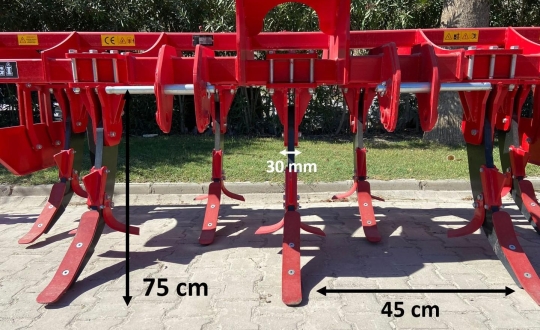

Ideal Tine Structure for Deep Cultivation

Ideal Tine Structure for Deep Cultivation

The ATLAS Subsoiler has optimum tine structure for deep cultivation, with a 75 cm tine height, 30 mm tine thickness, and 45 cm tine distance.

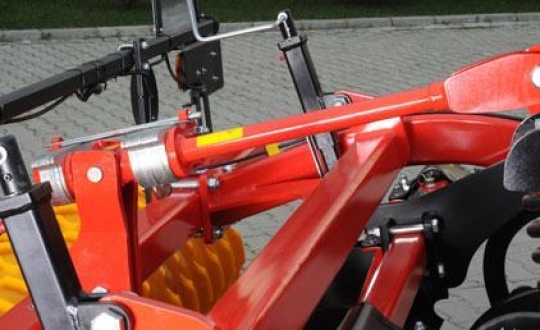

Easy Working Depth Adjustment

Easy Working Depth Adjustment

Double hydraulic roller pistons allow easy working depth adjustment.

Accessories
Side Plates

Side Plates

A level soil surface is obtained through the closure of the exarated soil by the side plates.

Roller Options

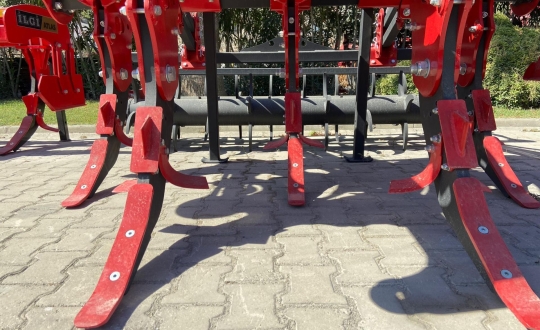

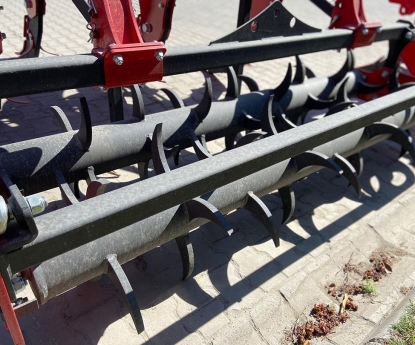

Double Spike Roller

Double Spike Roller

Technical data
Model Number of Tines Height of Tines Working Depth Distance Between Tines Thickness of Tines Working Width (cm) Transport Width (cm) Weight (kg) Power Requirement (hp)
ATLAS 5 5 75 cm 50 cm 45 cm 30 mm 250 260 1074 70 - 110
ATLAS 7 7 75 cm 50 cm 45 cm 30 mm 300 310 1350 100 - 160
