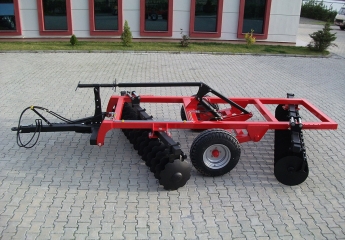

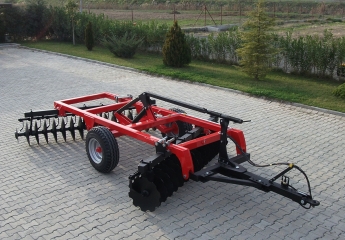

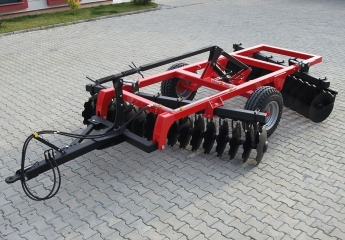

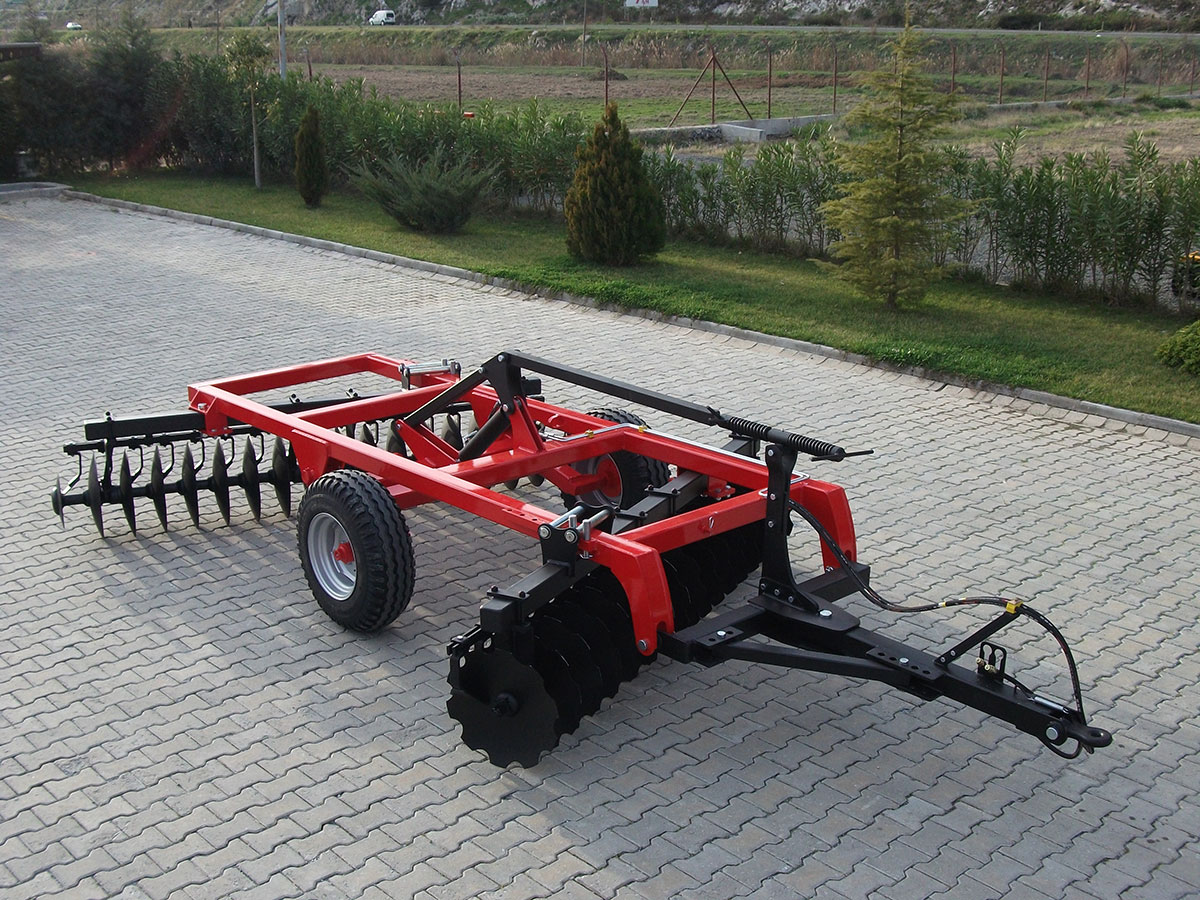

The offset-type Ecostar disc harrow is an economic and easy-to-use machine featuring a lighter chassis. The Ecostar disc harrow, which has an effective and wide area of use in soil cultivation, especially in stubble processing and seedbed preparation works, allows plant residues to be broken down and mixed into the soil without overturning the soil. Efficient farming is thus supported through effective cultivation and the maintenance of the biological balance of the soil.
A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions

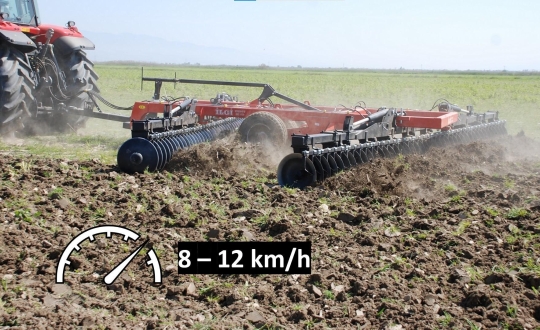

The highly accurate cutting and concave angle of the discs provides maximum efficiency by facilitating less time on the ground, with a working speed of 8-12 km/h
The direction angle can be set at up to 22 degrees and affects the working depth, tilting, and shredding properties of the discs. It can be easily adjusted from the multi-hole mechanism on the chassis, while the direction angle can be adjusted mechanically or hydraulically
Maintenance- and lubrication-free, long-lasting, robust roller bearings.
Welded disc arms that are resistant to tough conditions and strong impacts.
The spring tension arm connecting the axle and the drawbar ensures the front and rear batteries are parallel. Parallelism can be adjusted hydraulically. At the same time, the spring suspension ensures flexibility, adapts to the unevenness of the field surface and the road conditions during operation, and minimizes bed and disc breakage.

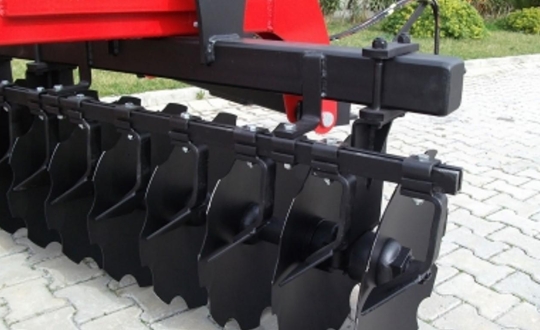

Special production scrapers are included with each disc and prevent residue by scraping the discs during soil cultivation. The distance between the scrapers and the discs can be set as desired or adjusted for wear.

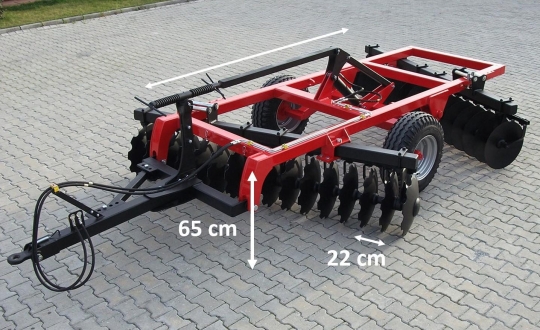

The chassis height is 65 cm, the disc distance is 22 cm, and the space between the front and rear discs is wide. The large working area of the discs ensures the most efficient transfer of soil from the front to the rear and facilitates working with minimum residue accumulation.
| Model | Number of Discs | Disc diameter (mm) | Working Width (cm) | Transport Width | Weight (kg) | Power Requirement (HP) |
|---|---|---|---|---|---|---|
| 28 AGL 46 | 28 | 460 | 260 | 280 | 1630 | 70 - 90 |
| 32 AGL 46 | 32 | 460 | 298 | 328 | 1730 | 85 - 100 |
| 36 AGL 46 | 36 | 460 | 322 | 342 | 1860 | 90 - 110 |
| 40 AGL 46 | 40 | 460 | 346 | 366 | 1960 | 100 - 120 |
| 44 AGL 46 | 44 | 460 | 370 | 390 | 2060 | 110 -130 |
| 48 AGL 46 | 46 | 460 | 394 | 424 | 2160 | 120 - 150 |
