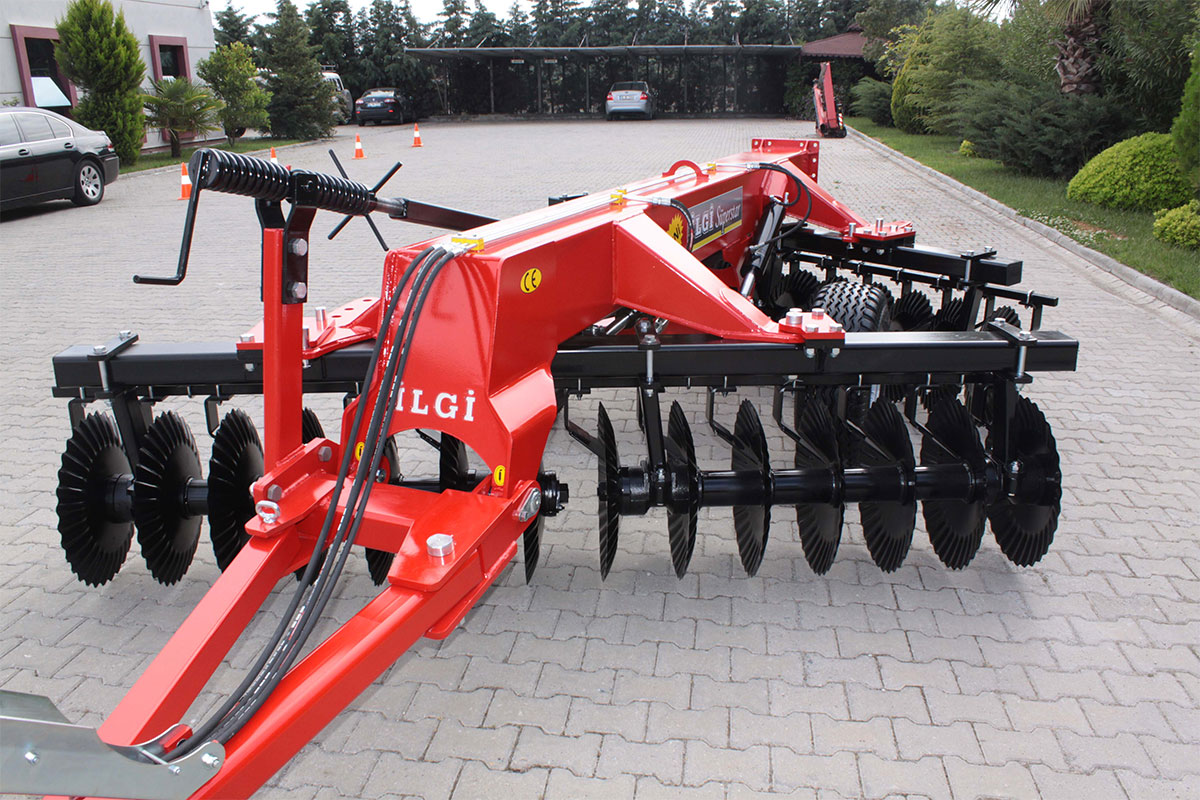

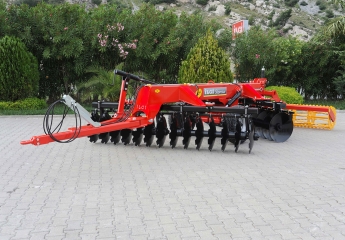

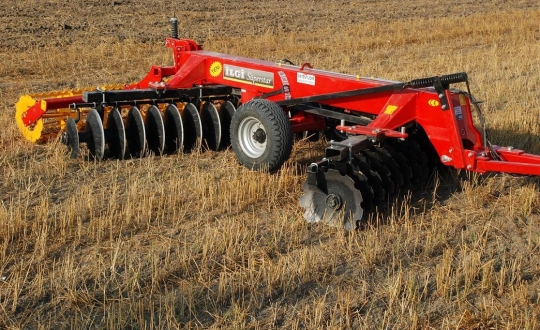

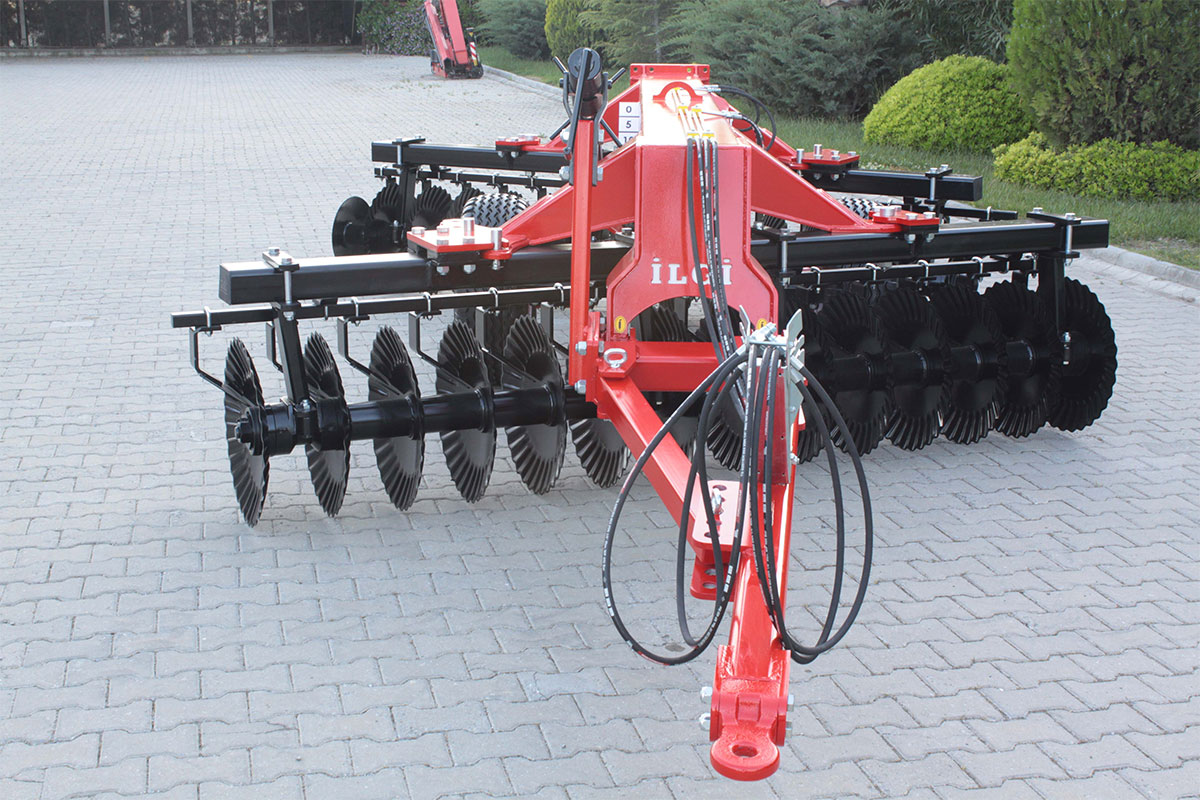

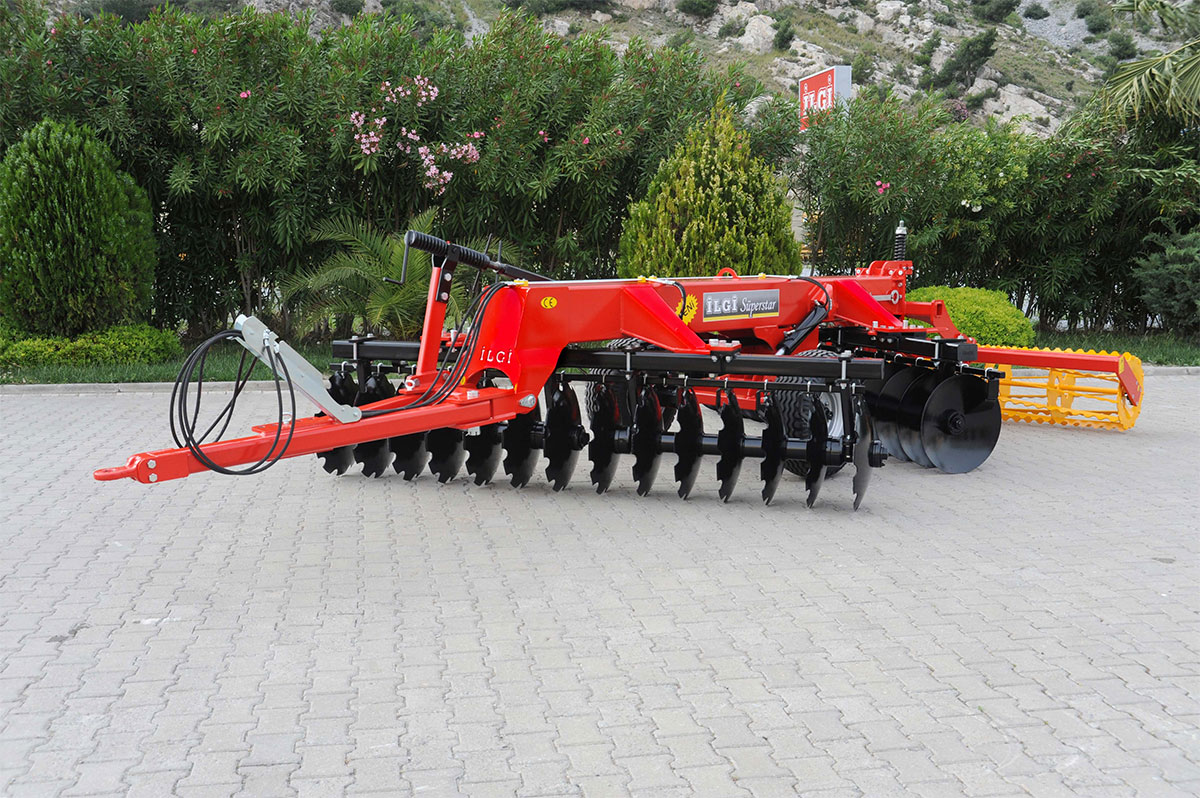

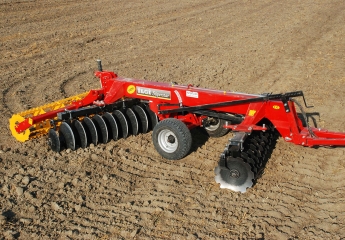

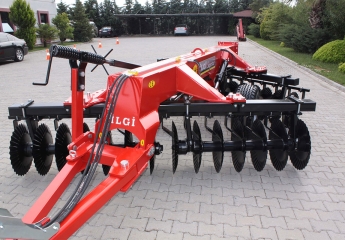

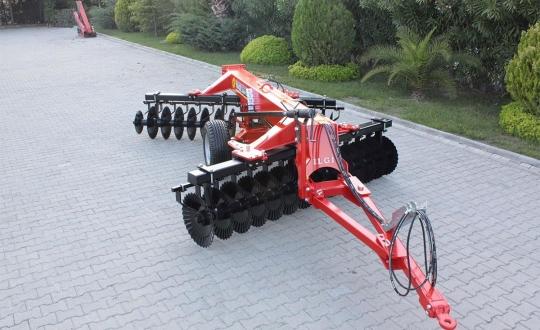

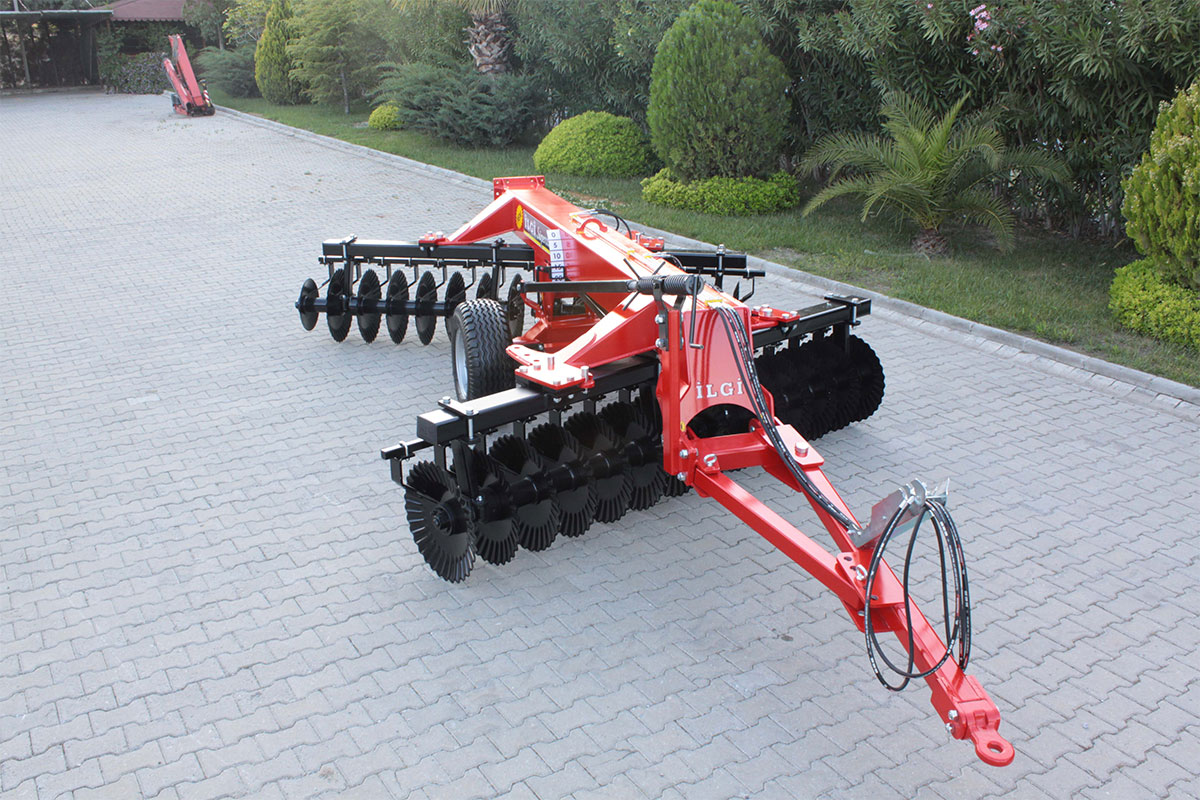

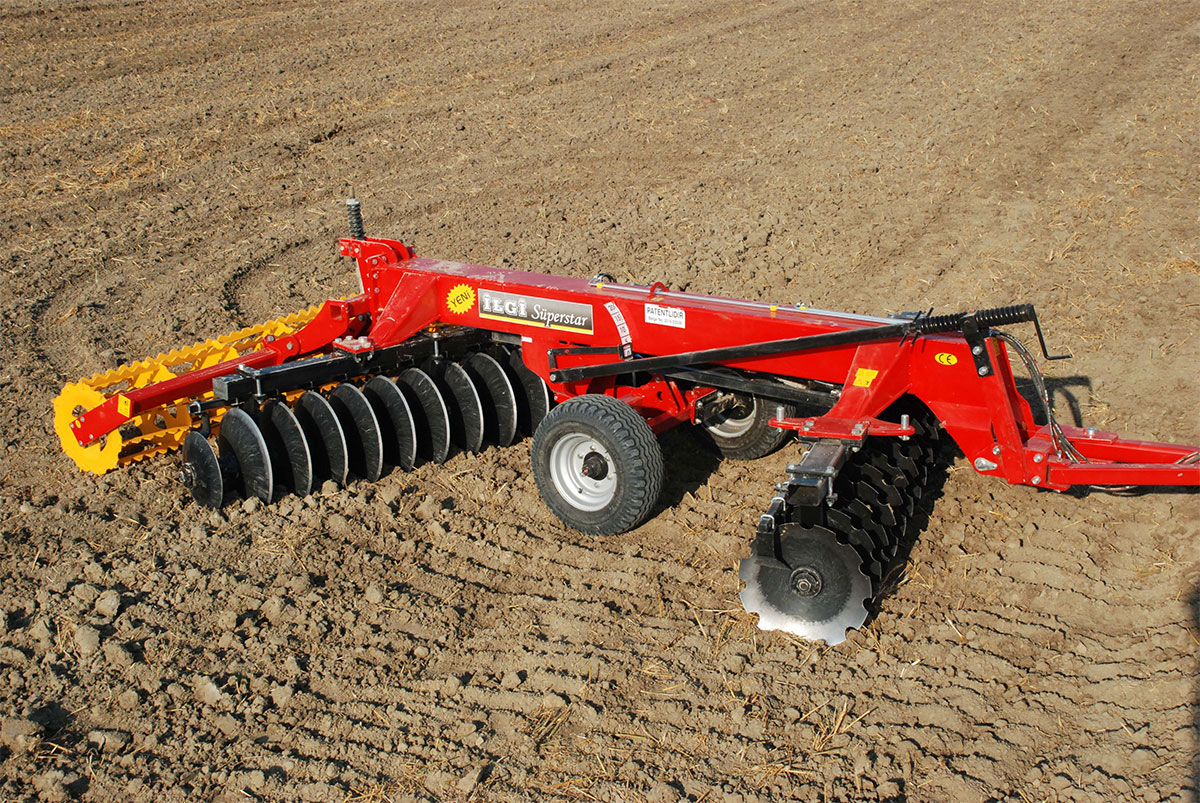

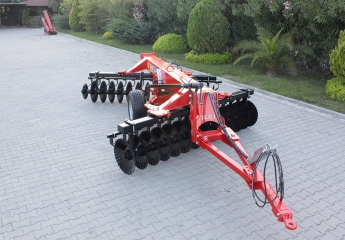

The heavy offsetdisc harrow Superstar is designed to handle many tasks. It can be used for both high-residue primary and secondary soil cultivation. Its heavy and durable structure is suitable for use in difficult conditions and for deep plowing. The different models available allow the farmer to choose the most appropriate solution for their needs.
A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions
The highly accurate cutting and concave angle of the discs provides maximum efficiency by facilitating less time on the ground, with a working speed of 8-12 km/h

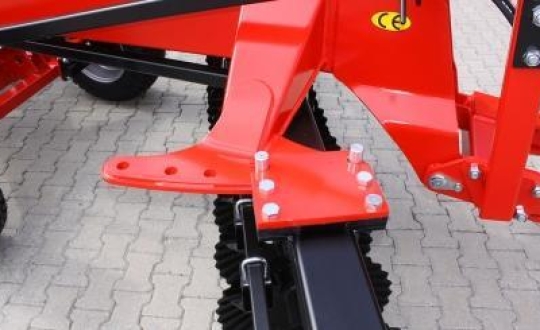

with a single heavy chassis design in the middle, it allows the discs to enter the soil more easily, facilitating deep cultivation. The chassis also allows a greater direction angle to be achieved
the directional angles affecting the working depth, tilt, and breaking properties of the discs can be easily adjusted using the multi-hole mechanism on the chassis. The direction angle can be adjusted mechanically or hydraulically.
maintenance- and lubrication-free, long-lasting, robust roller bearings
welded disc arms that are resistant to tough conditions and strong impacts

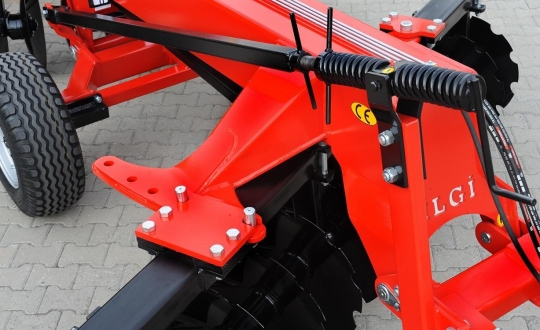

the spring tension arm connecting the axle and the drawbar ensures the front and rear batteries are parallel. Parallelism can be adjusted hydraulically. At the same time, the spring suspension ensures flexibility, adapts to the unevenness of the field surface and the road conditions during operation, and minimizes bed and disc breakage.

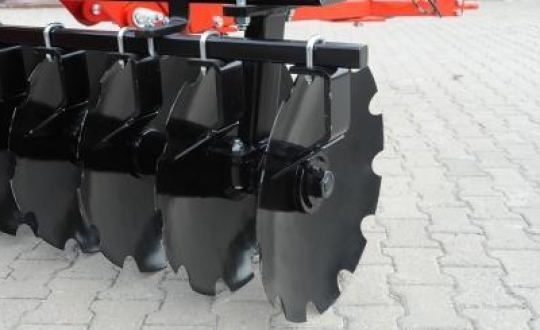

Special production scrapers are included with each disc and prevent residue by scraping the discs during soil cultivation. The distance between the scrapers and the discs can be set as desired or adjusted for wear.

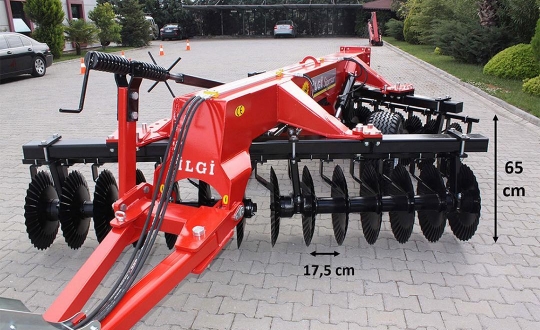

The chassis height is 65 cm, the distance between discs is 17.5 cm, and the distance between the front and rear discs is wide. The large working area of the discs ensures the most efficient transfer of soil from the front to the rear and facilitates working with minimum residue accumulation.

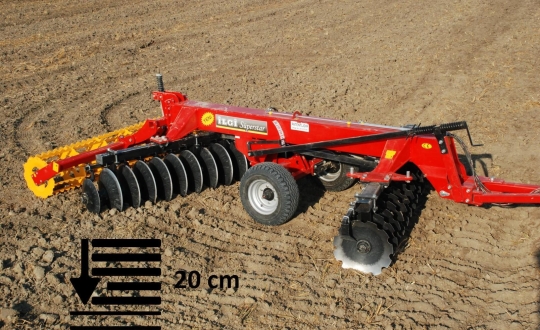

The maximum working depth is reached thanks to the disc direction angle that can reach 25° and its heavy structure gathered in a single chassis.

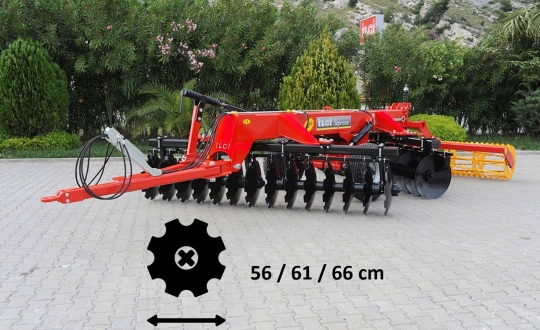

56, 61, and 66 cm diameter notched and flat disc options are available
| Model | Number of Discs(mm) | Disc Diameter (mm) | Working Width (cm) | Transport Width (cm) | Weight (kg) | Weight Roller (kg) | Power Requirement(HP) |
|---|---|---|---|---|---|---|---|
| 20 OGB 56 | 20 | 560 | 220 | 250 | 1850 | 400 | 70-100 |
| 22 OGB 56 | 22 | 560 | 240 | 270 | 1900 | 420 | 90-120 |
| 24 OGB 56 | 24 | 560 | 260 | 290 | 1950 | 440 | 100-140 |
| 26 OGB 56 | 26 | 560 | 280 | 310 | 2000 | 460 | 110-150 |
| 28 OGB 56 | 28 | 560 | 300 | 330 | 2050 | 480 | 120-160 |
| 30 OGB 56 | 30 | 560 | 320 | 350 | 2100 | 500 | 130-170 |
| 32 OGB 56 | 32 | 560 | 340 | 370 | 2150 | 520 | 140-180 |
| 34 OGB 56 | 34 | 560 | 360 | 390 | 2200 | 540 | 150-190 |
| 36 OGB 56 | 36 | 560 | 380 | 410 | 2250 | 560 | 160-200 |
