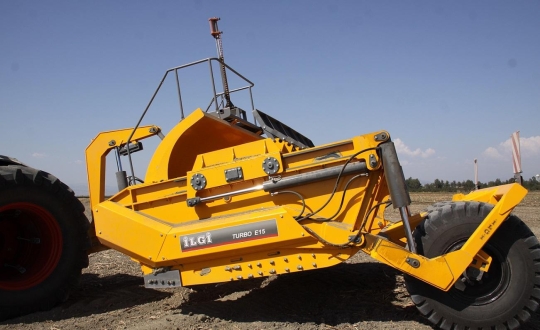

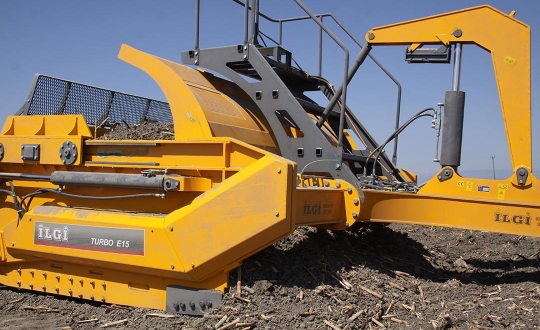

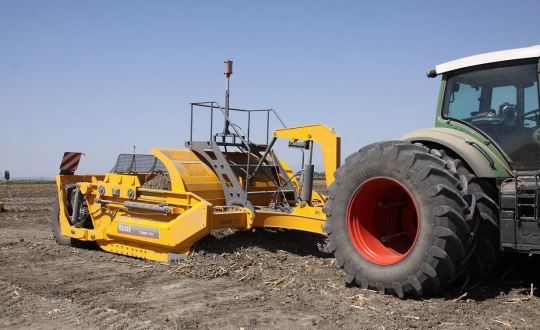

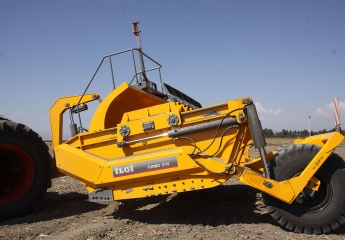

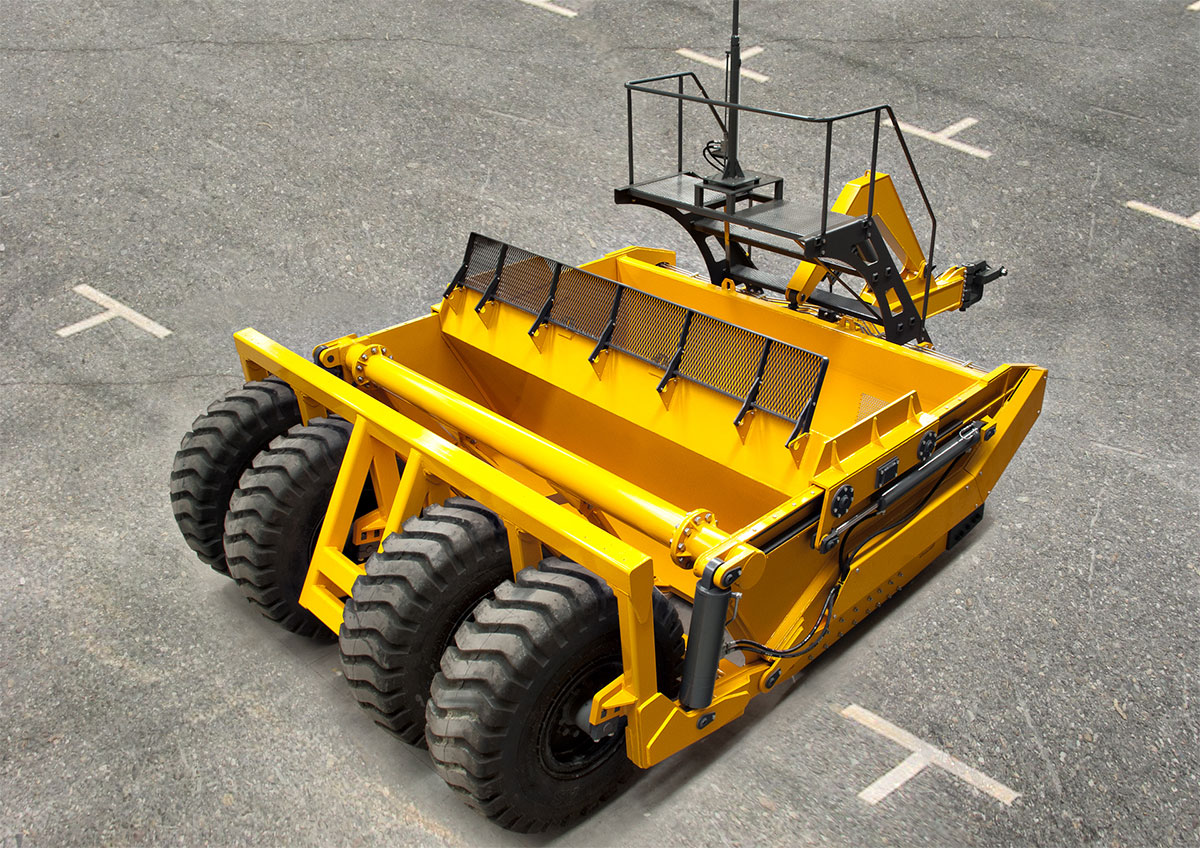

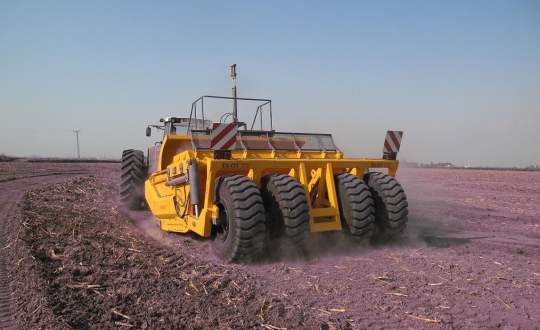

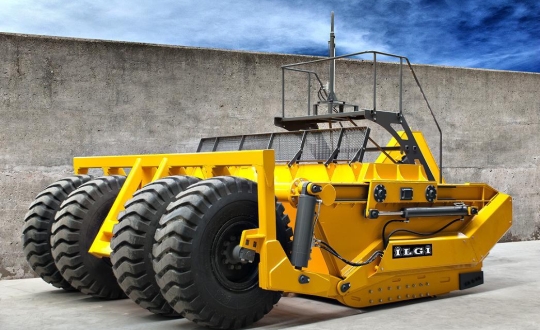

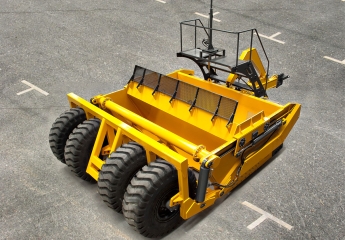

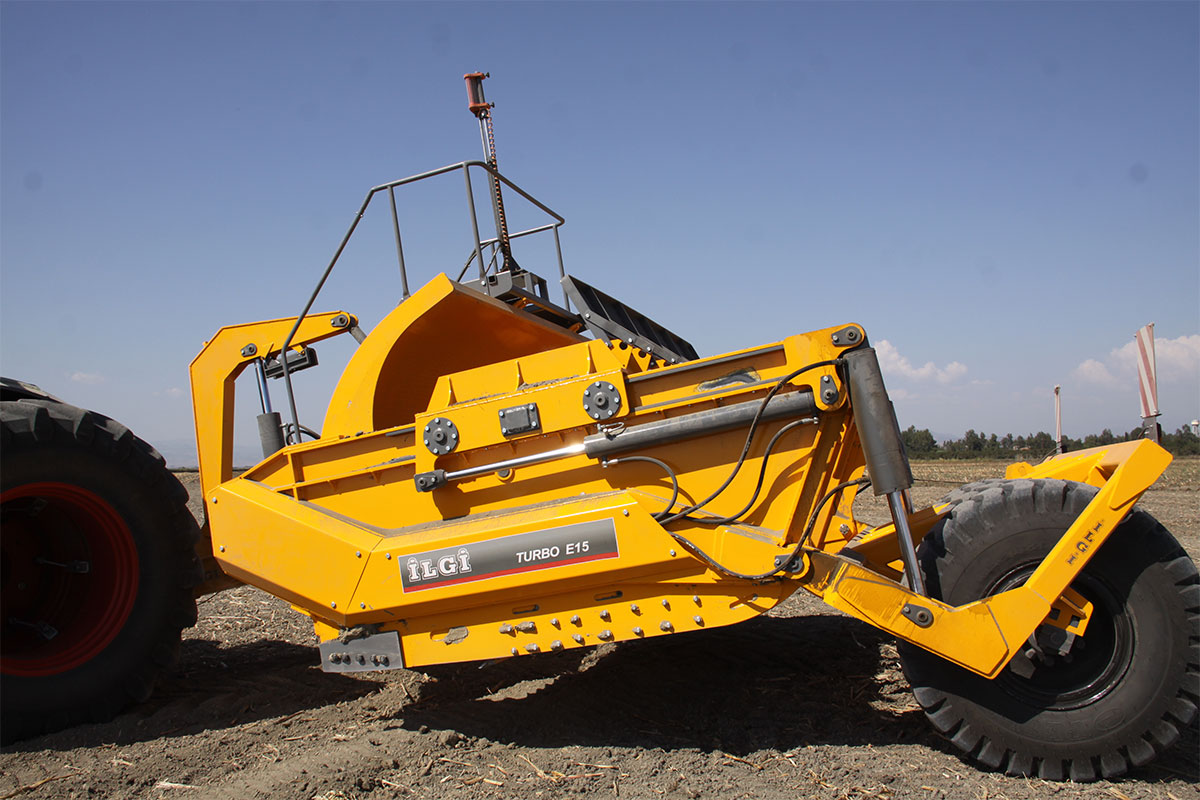

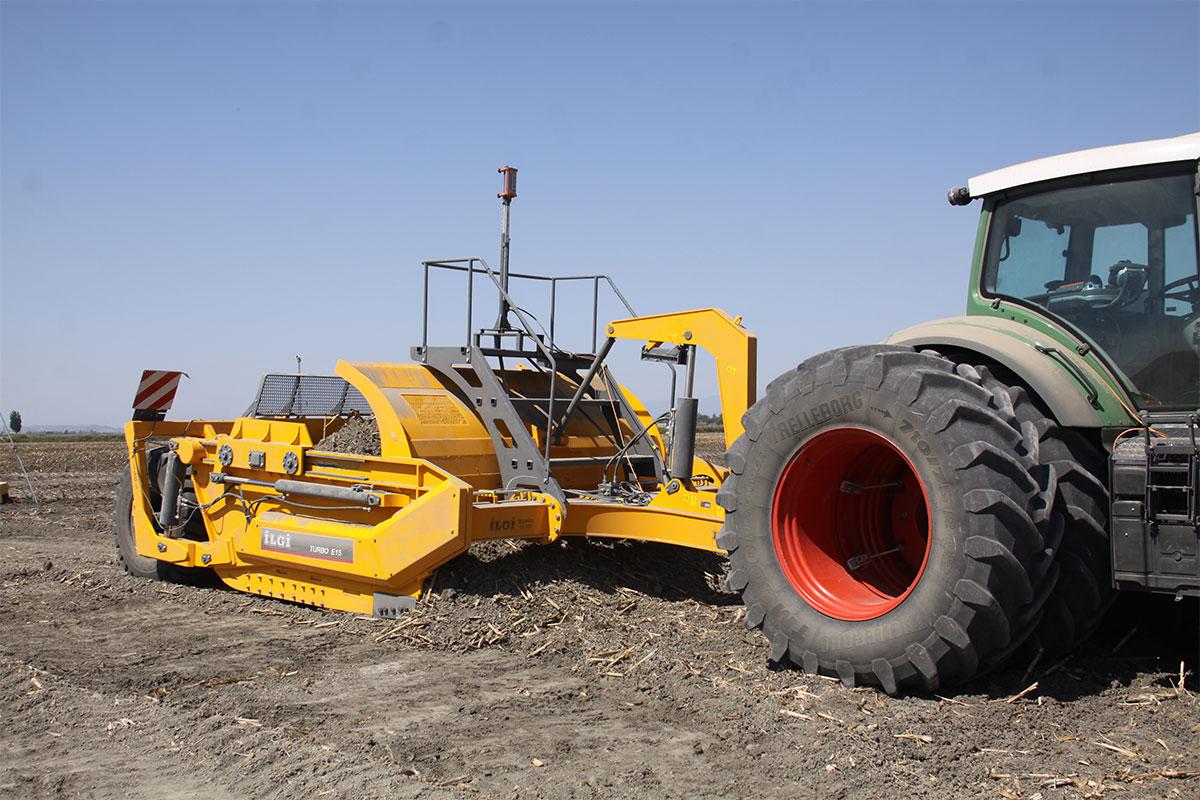

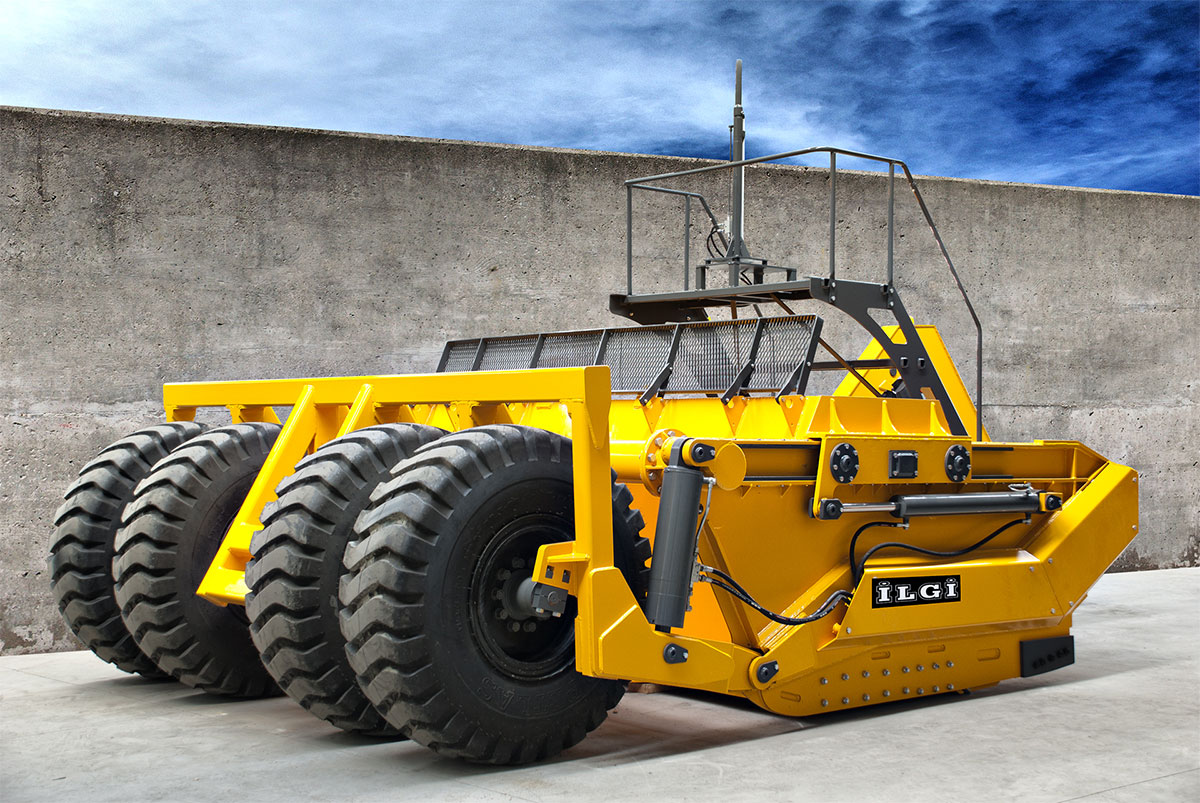

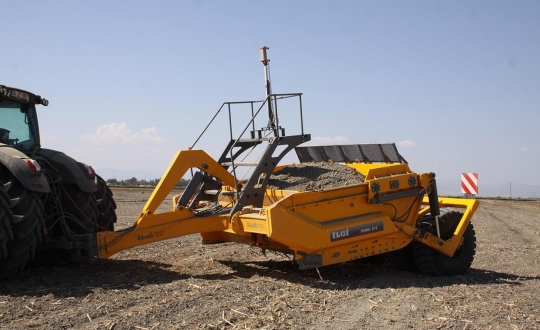

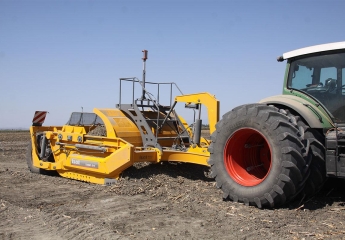

The GE Series Scraper is used for soil moving and leveling operations. It allows leveling to be done easily and quickly, even in areas with very uneven surfaces and difficult soil structures. The soil is dug up from the source and loaded into the tank of the machine. After the cover of the tank is closed, the soil is taken to the desired location, without dragging the soil. Soil distribution is achieved by opening the cover and adjusting the height of the machine with the hydraulic arms, depending on how much soil is to be poured. The soil transported from the uneven ground is laid much faster and easier with the help of an ejector in the desired location. It can be used with laser or GPS systems to ensure an error-free and easy operation.
While laying and discharging the soil, the ejector inside the tank allows the soil to be discharged quickly and easily.
The GE Series Scraper is designed with high-quality materials, making it suitable for difficult digging and long-term work. Its durable structure ensures long-term use.

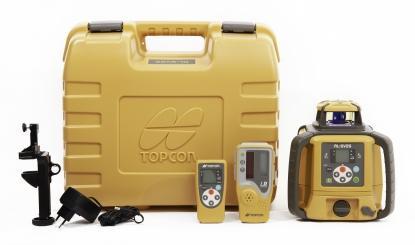

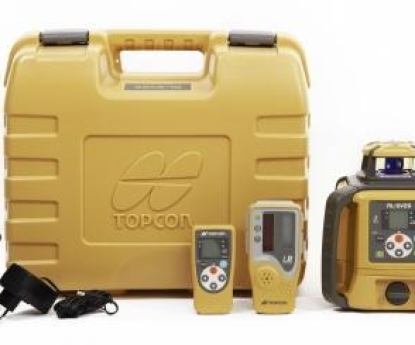

Due to the integrated automatic laser and GPS systems. It is not necessary to remove the detailed excavation fill of the land for leveling. The laser or GPS systems do this easily. The operator does not need to be trained in land surveying. Once the laser and GPS system are adjusted, no further adjustments are required.
The automatic measuring process, the ability to carry the soil without dragging, and the ability to carry a lot of soil at once minimize the time spent in the field while leveling with the GE Series. As a result, the fuel and labor requirement is reduced.
The GE Series Scraper carries soil in its tank, not by dragging it. This allows a greater payload and a lower tractor power requirement.
There are three different slope options depending on demand and need: Zero Slope, Single Slope, and Double Slope.
We provide support to customers who are lack knowledge of leveling using laser and GPS devices from the moment they purchase our products. We provide training until the operator is fully trained up to the first use. We continue to provide technical support in the following period.
|Model||Working Width (mm)||Transport Width(mm)||Capacity (m³)||Tyre Size||Weight(kg)||Power Requirement (HP)|
|GE DC-17 10,5||3200||3700||13||20.5 x 25 (4)||11000||350-500|
|GE DC-20 12||3700||4000||15||20.4 x 25 (4)||11900||350-500|
|GE DC-22 14||4260||4400||17||23.5 x 25 (4)||13600||350-500|
