Cultivators


70 - 100 hp

2 - 4 m

0 - 25 cm

800 kg / 30 cm

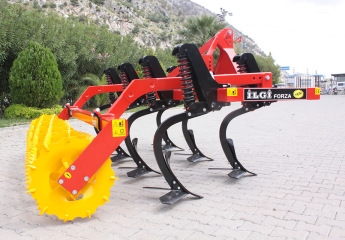

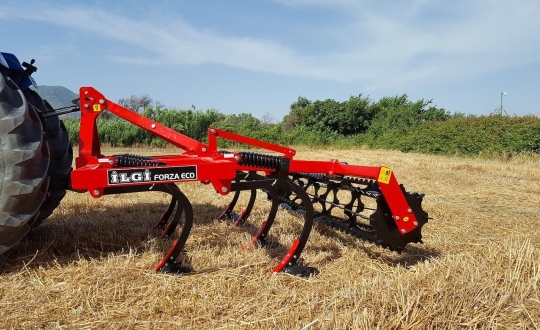

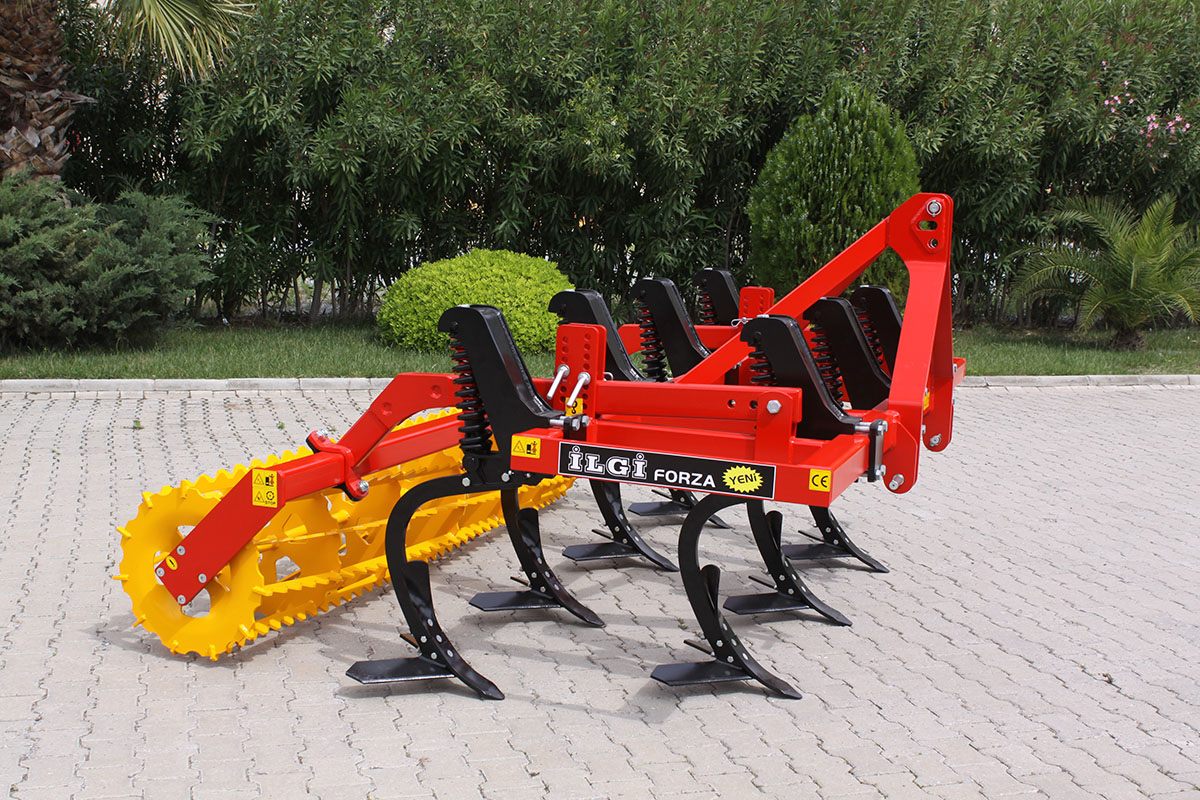

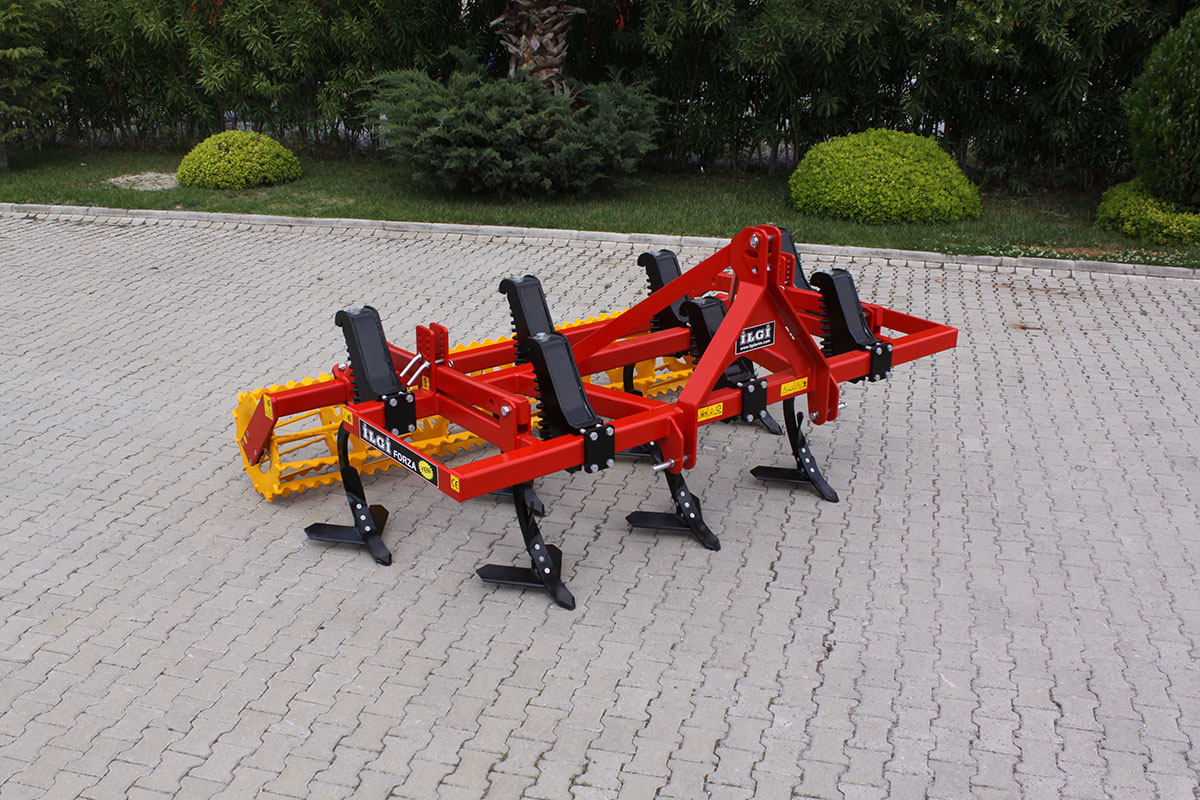

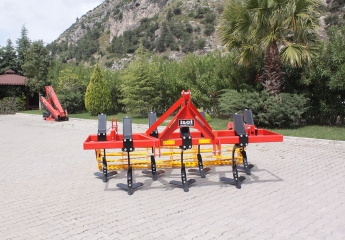

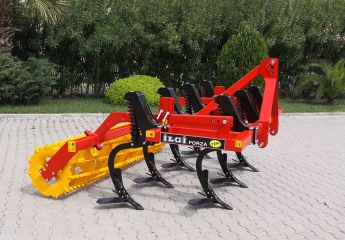

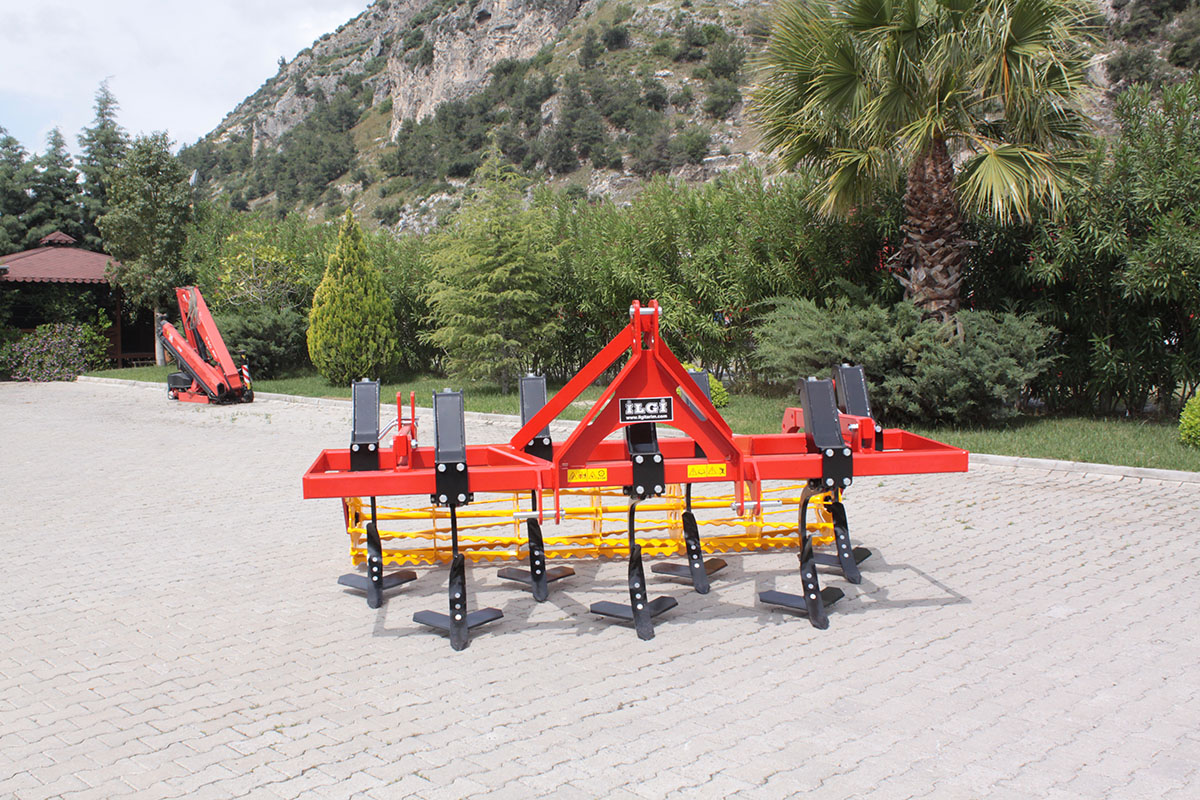

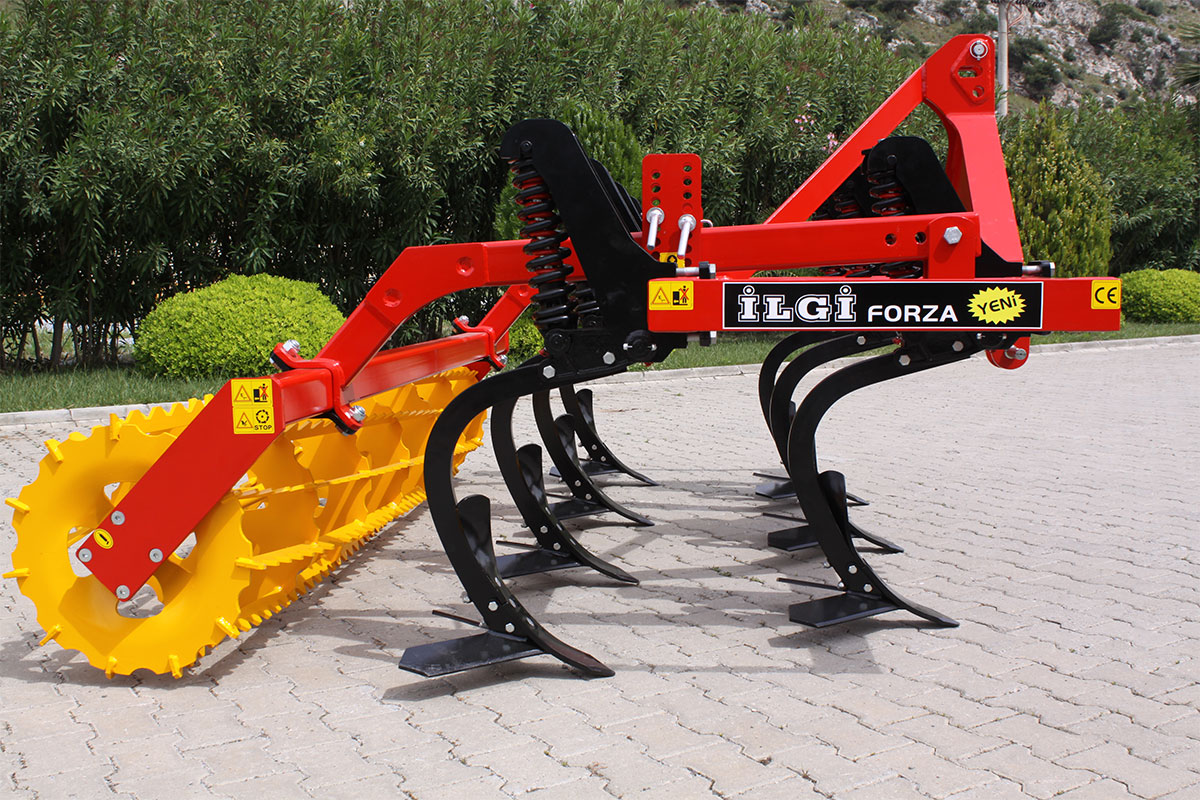

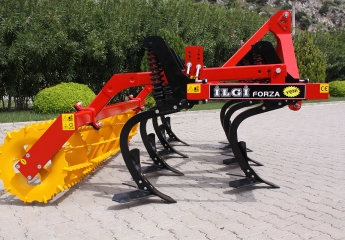

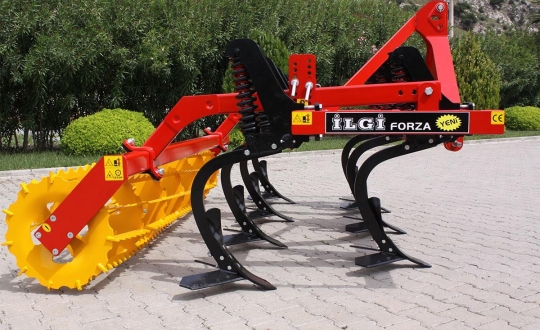

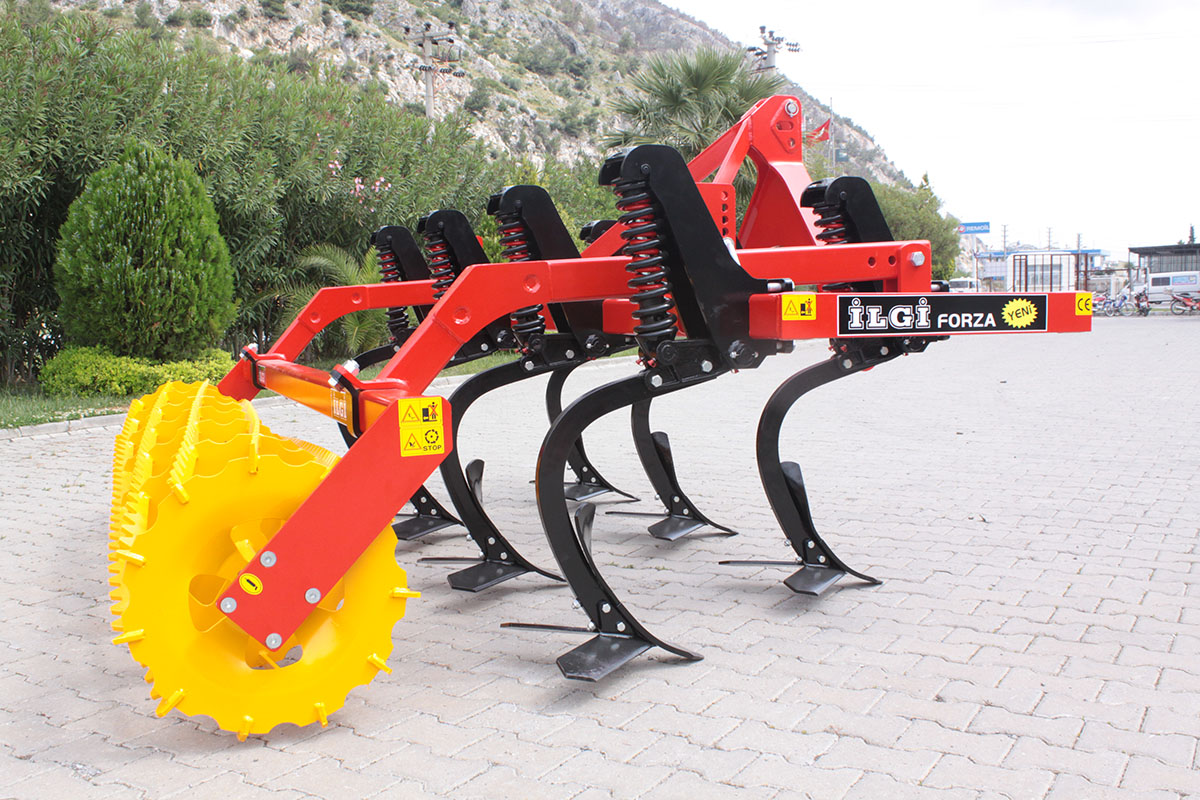

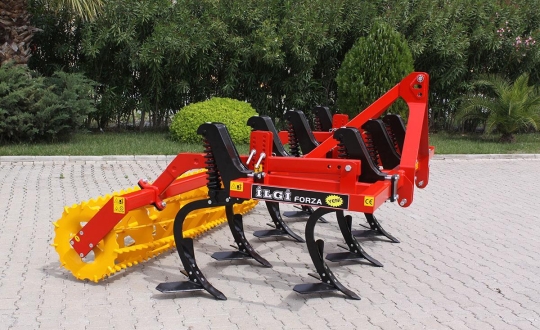

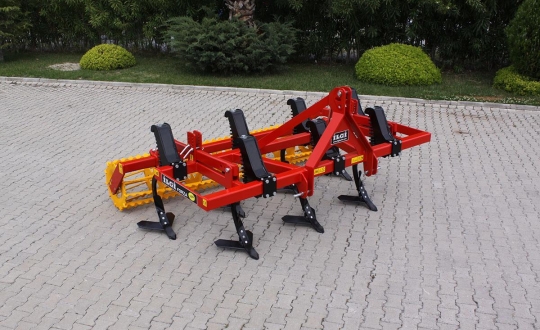

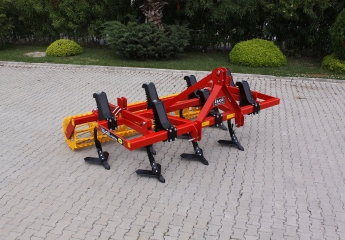

Forza

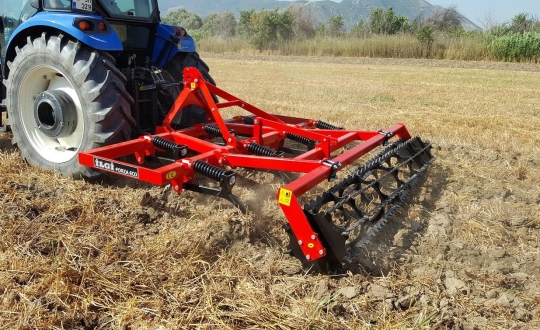

The Forza spring cultivator has a compact and combined structure, and can be used for stubble breaking and seedbed preparation. Effective soil cultivation is ensured in post-harvest stubble processing. The soil is cultivated by tearing to the desired depth without overturning. It is very successful in weed control.

Advantages

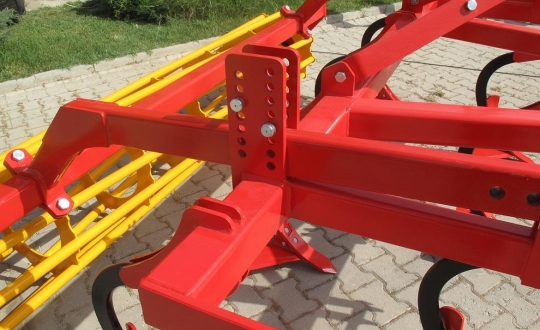

Durable Chassis

Durable Chassis

A sturdy chassis that is durable and resistant to difficult conditions.

Compact and Combined Design

Compact and Combined Design

After cultivating the soil efficiently with specially produced discs, it carries out soil breaking, compacting, and leveling operations with different types of rollers, thus producing a perfect surface. Its simple combined design and compact structure ensure ease of use.

Less Tractor Power Requirement

Less Tractor Power Requirement

Suitable for use with smaller tractors due to its lightweight structure.

Minimum Time, Maximum Efficiency

Minimum Time, Maximum Efficiency

At a 8-12 km/h operating speed, with maximum efficiency ensured through the minimum amount of time.

Low Fuel Consumption, Low Cost

Low Fuel Consumption, Low Cost

Fuel savings are achieved from the low tractor power requirement provided by the ideal cutting angles of the blades

Damage-Free Driving

Damage-Free Driving

Strong springs on each tine allow continuous operation at the adjusted working depth thanks to its 30 cm flexing capacity, providing a perfect driving experience. This also prevents the tines from breakage and damage.

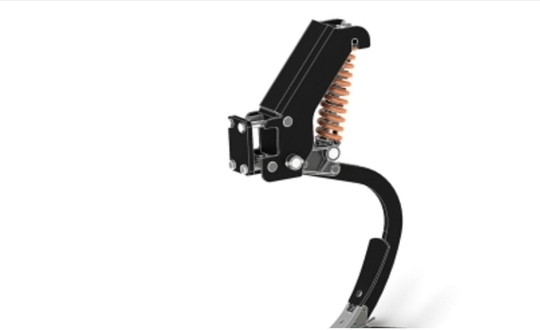

Strong Tine Structure

Strong Tine Structure

Forza tines are produced with a strong spring safety mechanism that is resistant to harsh conditions and impacts. The safety bolt shear resistance of the tines during driving is 800 kg.

Robust Bearing Housing

Robust Bearing Housing

(Maintenance- and lubrication-free, long-lasting, robust roller bearings.

Easy Working Depth Adjustmen

Easy Working Depth Adjustmen

The desired working depth can be adjusted easily with the help of the roller. The working depth can be easily adjusted using 5 mm, 10 mm, and 20 mm thick aluminum spacers. The roller height can be adjusted mechanically or hydraulically.

Roller Options

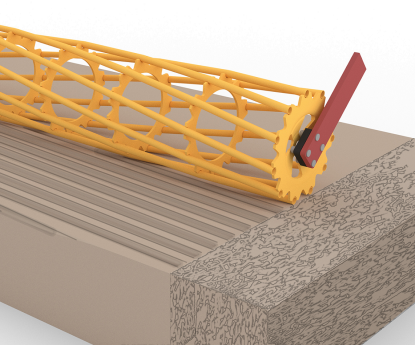

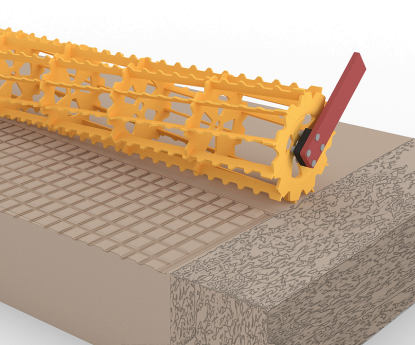

Cage Roller

Cage Roller

Notched Roller

Notched Roller

Technical data
Model Number of tines Working Width (cm) Transport Width (cm) Weight (kg) Power Requirement(HP)
APL-2 5 5 250 270 745 60 - 70
APL-2 7 7 300 320 925 70 - 80
APL-2 9 9 350 370 1105 80 - 90
APL-2 11 11 400 420 1470 160 - 90
