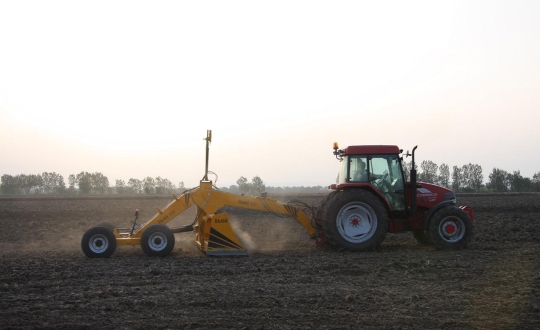

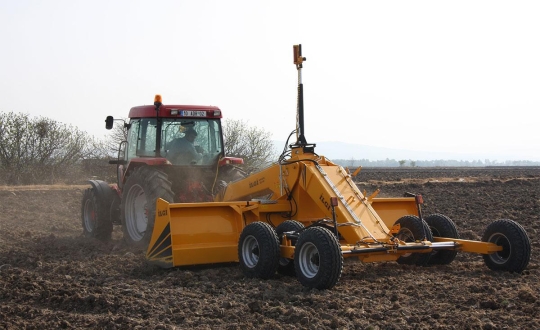

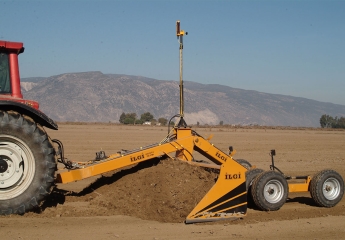

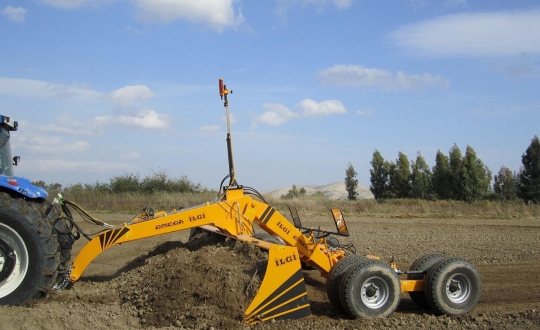

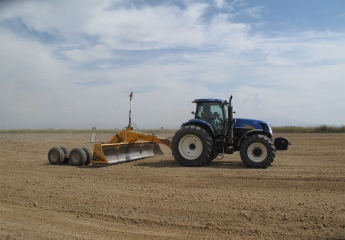

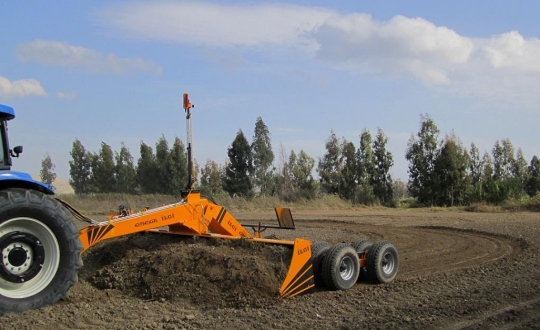

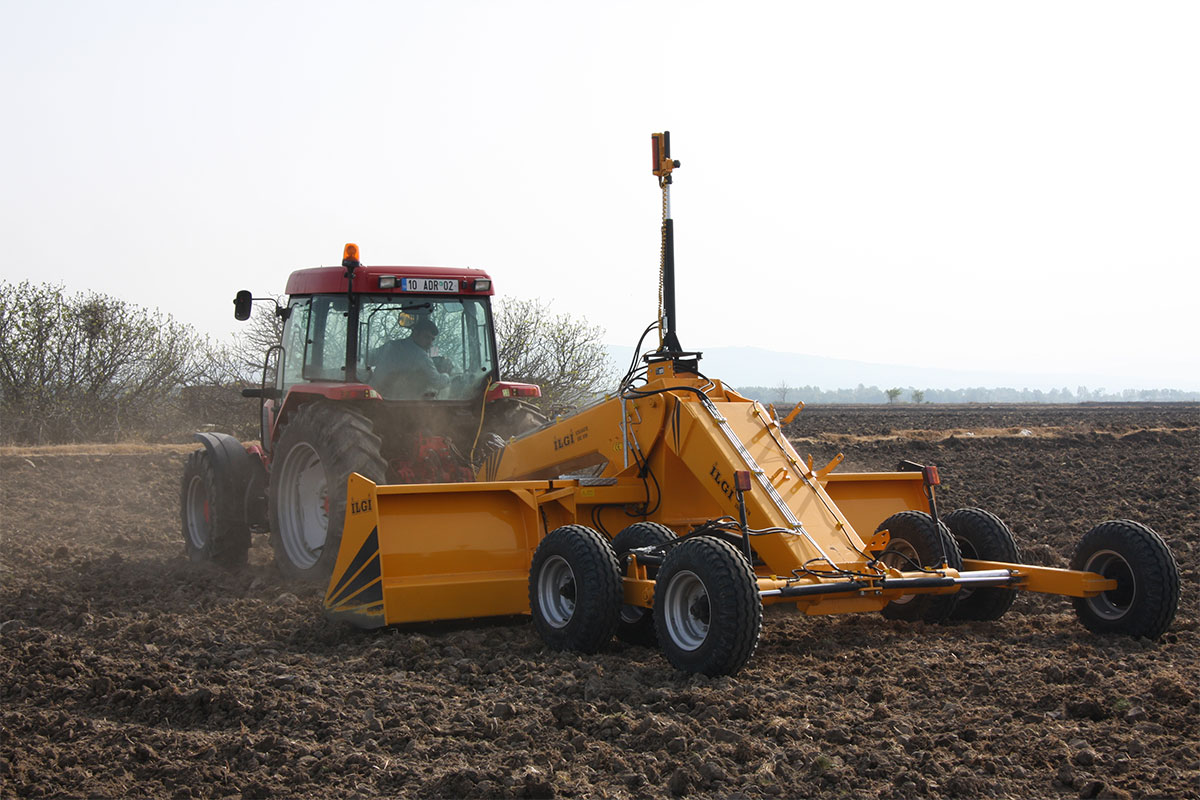

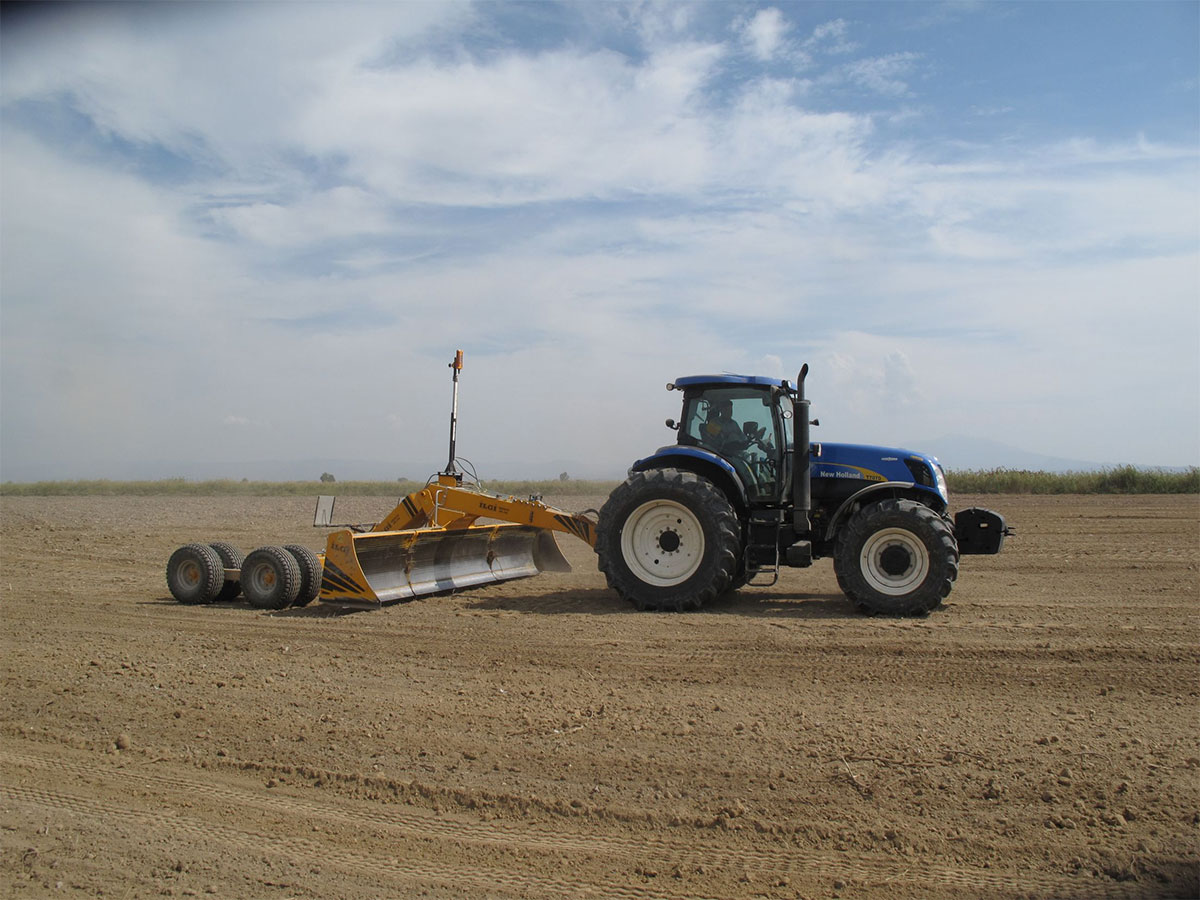

The Omega Leveling Machine features laser and GPS options and allows precise surface leveling with zero error, low cost, and shorter time. The greater efficiency in the use of water in fields leveled with Omega leads to a reduction in the water usage rate of approximately 35-40%. Weed problems in the field decrease, salinity in the soil is taken under control, product maturity is even across all parts of the field, chemical use decreases and the arable area increases by 30%. It enables more practical, smoother and more enjoyable farming.

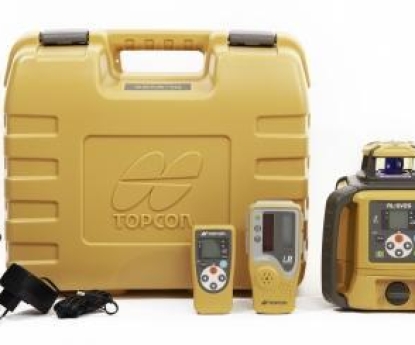

Due to the integrated automatic laser and GPS systems. It is not necessary to remove the detailed excavation fill of the land for leveling. The laser or GPS systems do this easily. The operator does not need to be trained in land surveying. Once the laser and GPS system are adjusted, no further adjustments are required.
With laser and GPS systems, the most accurate shovel and blade angles, and the sensitive working principle of the machine, precise leveling without errors is performed.
Automatic measurement saves time by greatly reducing the time required for leveling. When leveling with Omega, the time spent in the field is minimized through precise and error-free work. As a result, the fuel and labor requirement is reduced.
There are three different slope options depending on demand and need: Zero Slope, Single Slope, and Double Slope.

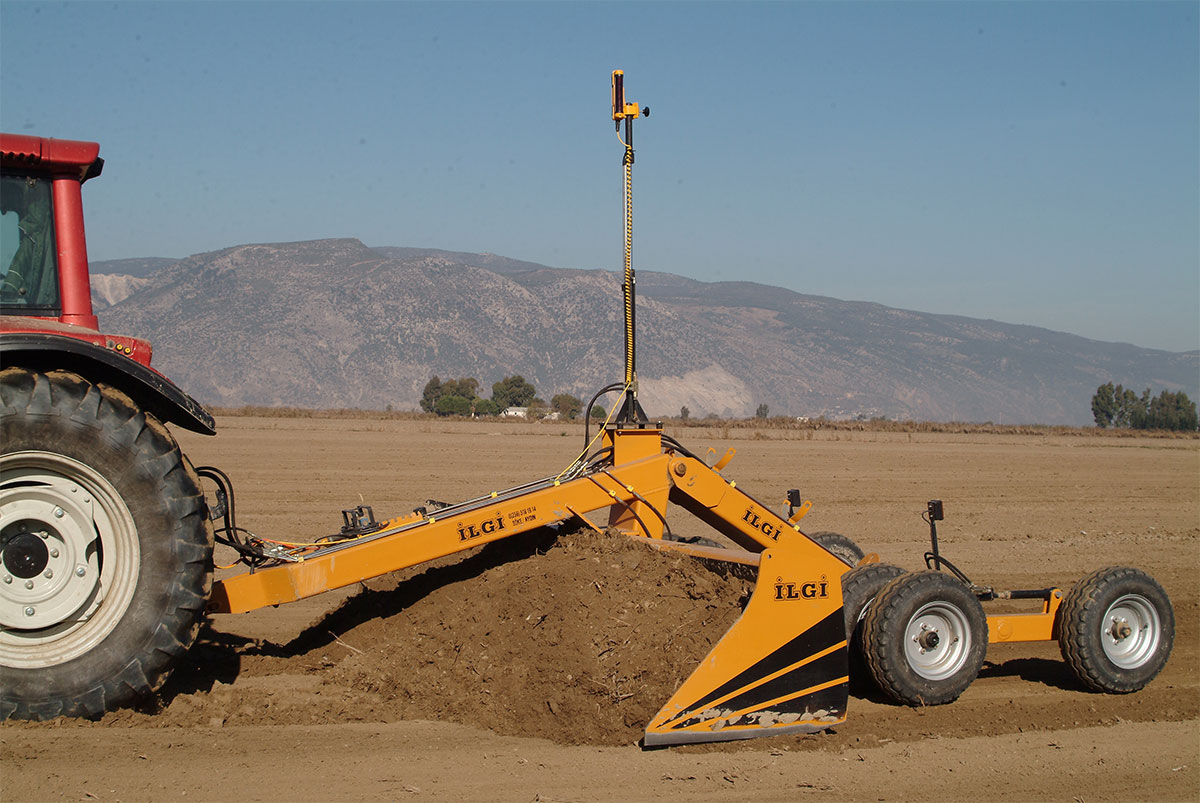

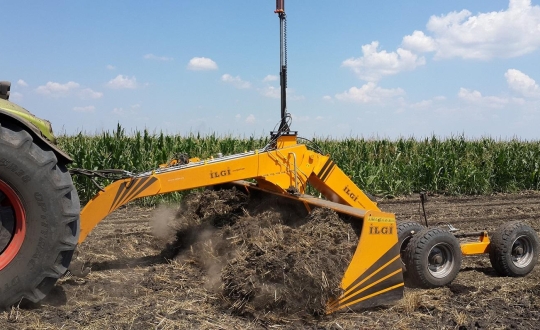

Omega is a long-lasting and durable machine, built with high-quality materials. Its specially produced extra-hardened and extra-long shovel blades allow digging even under the most difficult conditions.

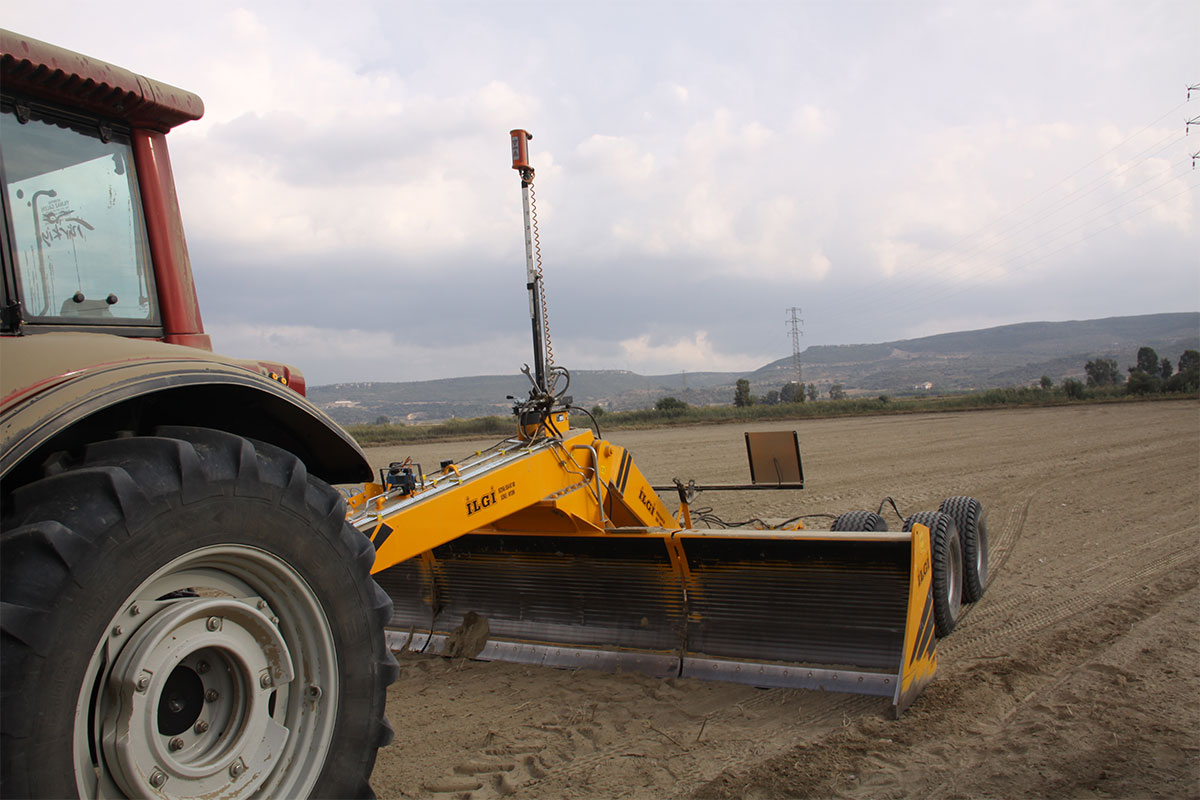

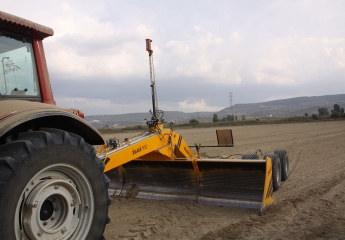

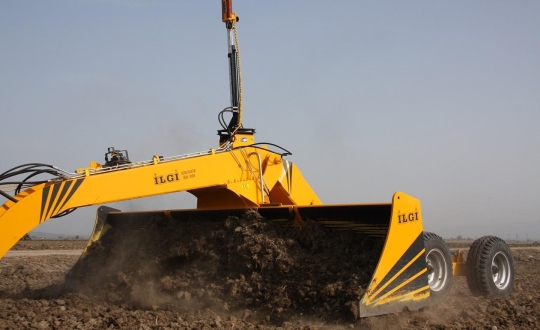

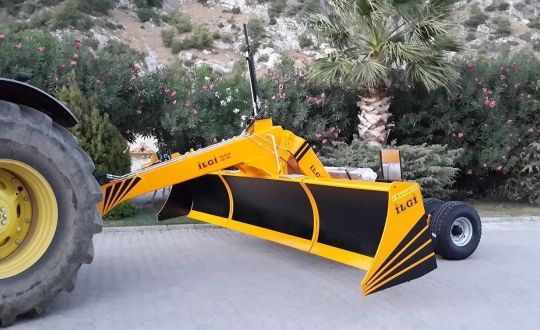

Omega's shovel height, degree of curvature, and blade length are produced to ideal dimensions to provide a perfect digging experience.
The right and left parallelism of the blade are adjusted easily with hydraulic control.

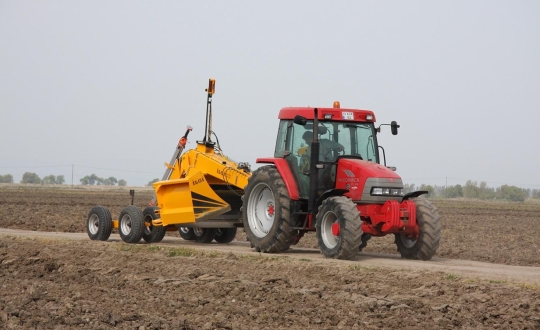

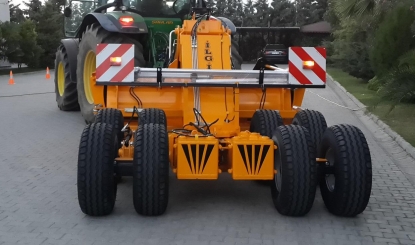

For safe transport on the road, the side wings are folded up hydraulically, and the road width is reduced to 2.5 meters, ensuring safe transport.
We provide support to customers who are lack knowledge of leveling using laser and GPS devices from the moment they purchase our products. We provide training until the operator is fully trained up to the first use. We continue to provide technical support in the following period.

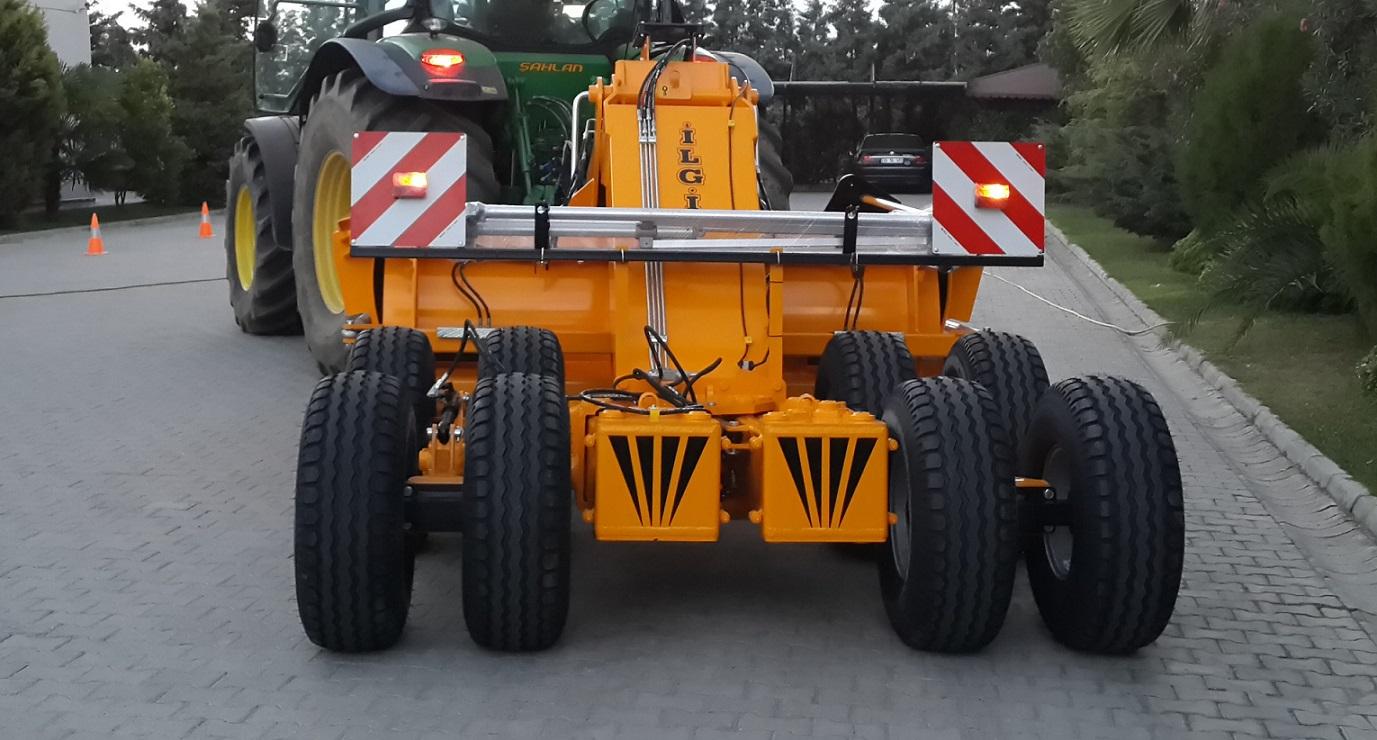

The accordion system increases the stability and durability of the machine while on the road. It is offered as an option. It is recommended for safer road position, especially for machines with a width of 5 m and above.
| Model | Working Width (cm) | Transport Width (cm) | Weight (kg) | Power Requirement (HP) |
|---|---|---|---|---|
| LTSV 35 | 350 | 200 | 2050 | 85-120 |
| LTSV 40 | 400 | 200 | 2100 | 100-140 |
| LTSV 50 | 500 | 200 | 2290 | 120-180 |
| LTSV 60 | 600 | 250 | 2640 | 160-210 |
| LTSV 50 - AC | 500 | 200 | 3510 | 120-180 |
| LTSV 60 - AC | 600 | 250 | 3680 | 160-210 |
| LTSV 70 - AC | 730 | 250 | 4330 | 220-300 |
All information is non-binding and subject to change without notice.
* Power requirement may vary according to soil conditions.
