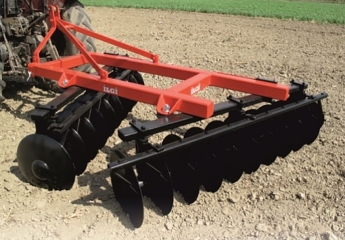

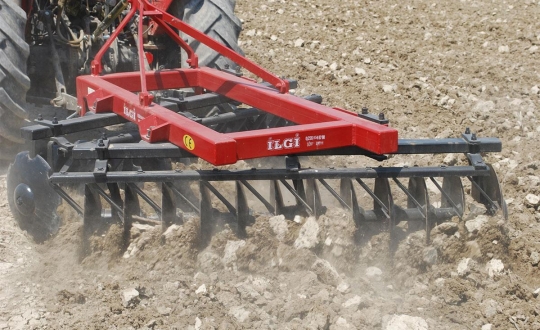

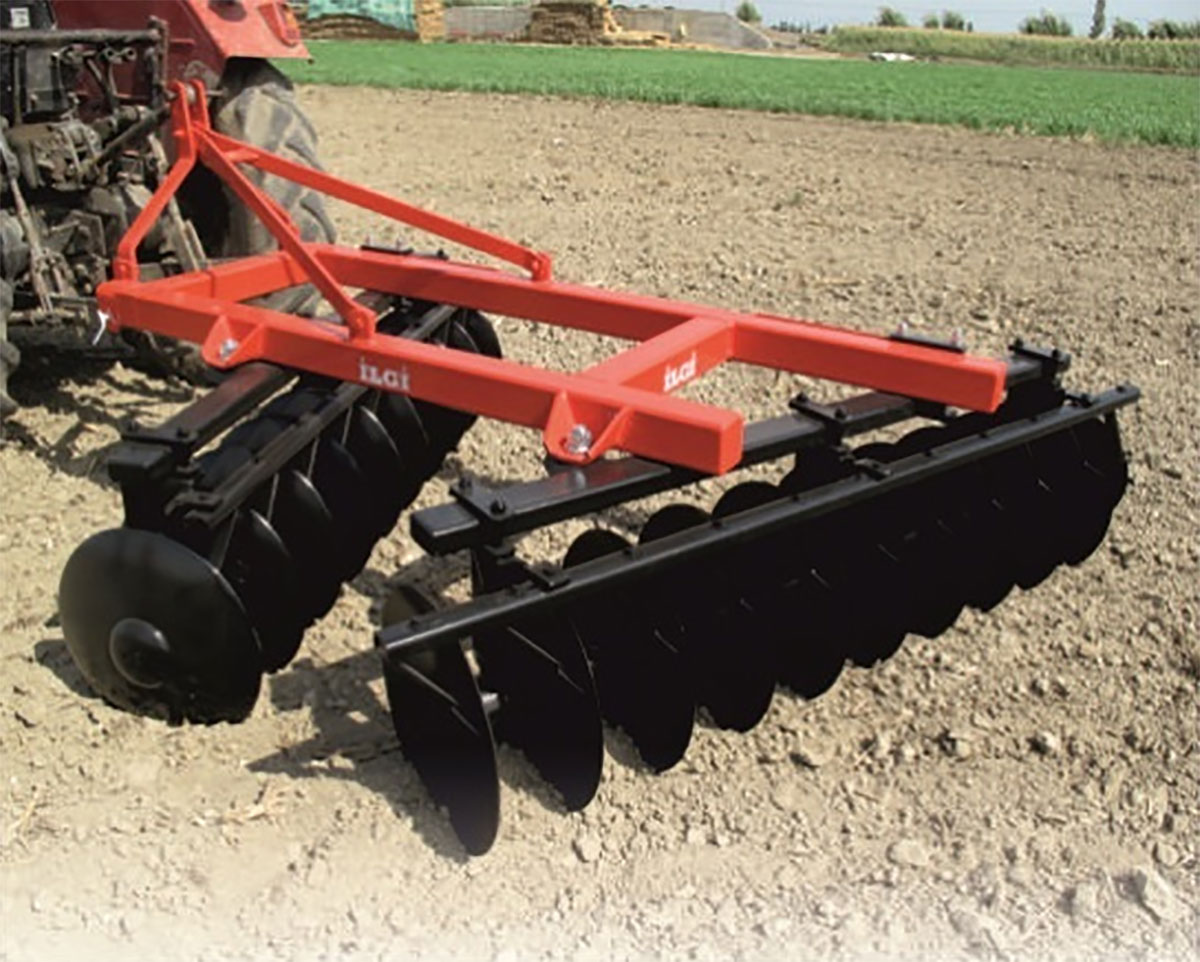

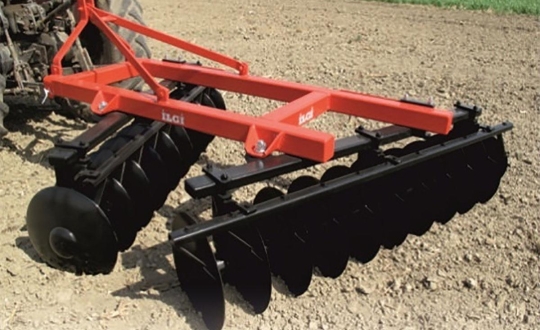

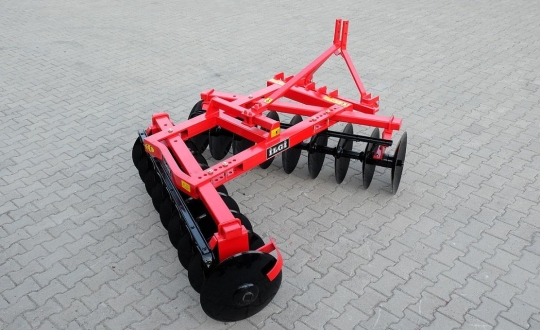

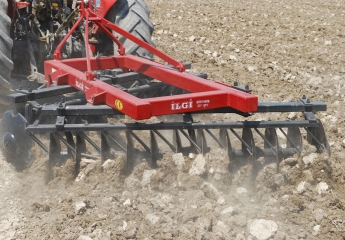

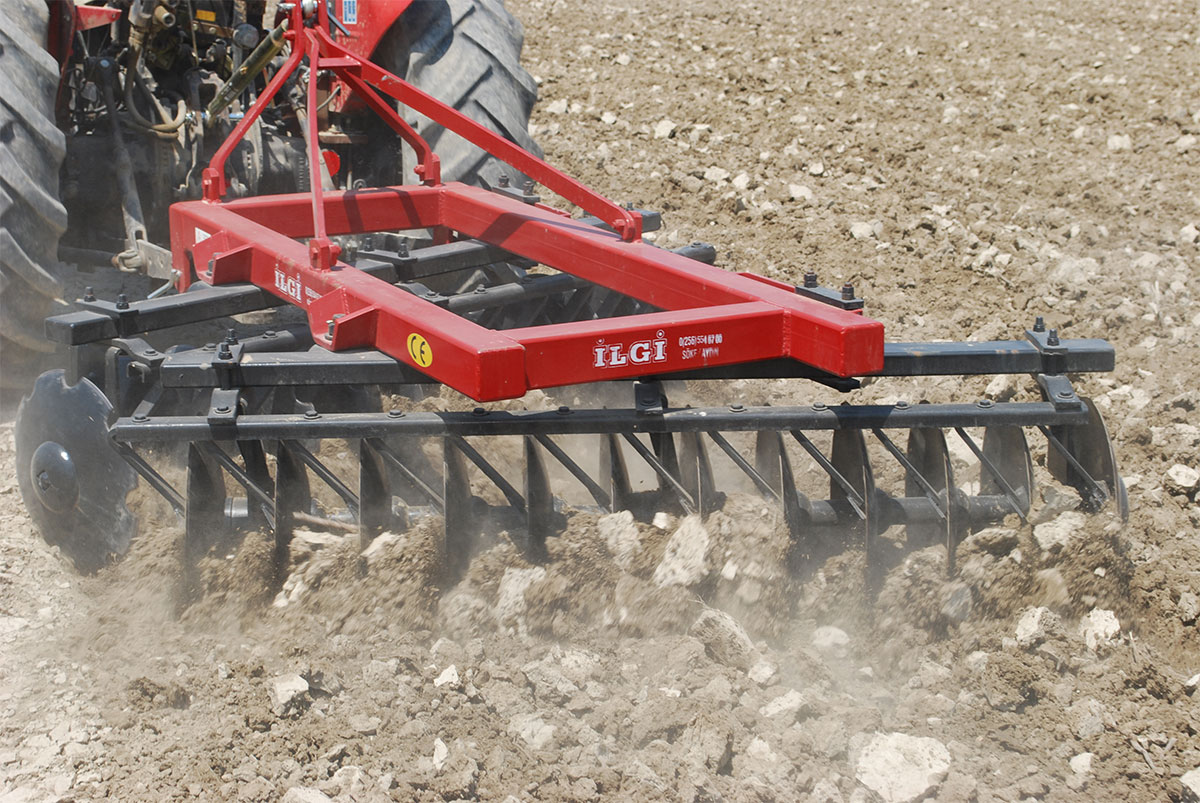

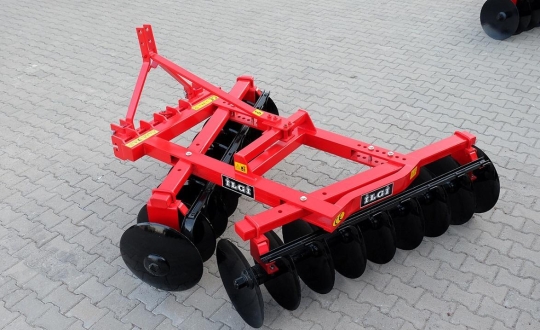

A mounted-type offset VTD disc harrow is preferred for orchards and small plots of land, where its use is practical. It is used in secondary soil cultivation, seedbed preparation, inter-tree processing in orchards, weed control, and in mixing fertilizer into the soil.
A sturdy chassis that is durable and resistant to difficult conditions.
The disc direction angles can be easily adjusted on the front and rear battery. The front-rear and right-left parallelism adjustments are made from the tractor suspension arms.
Ease of use due to its simple design.
Maintenance- and lubrication-free, long-lasting, robust roller bearings.
Welded disc arms that are resistant to tough conditions and strong impacts.

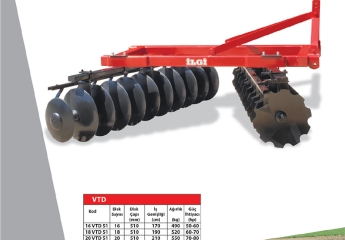

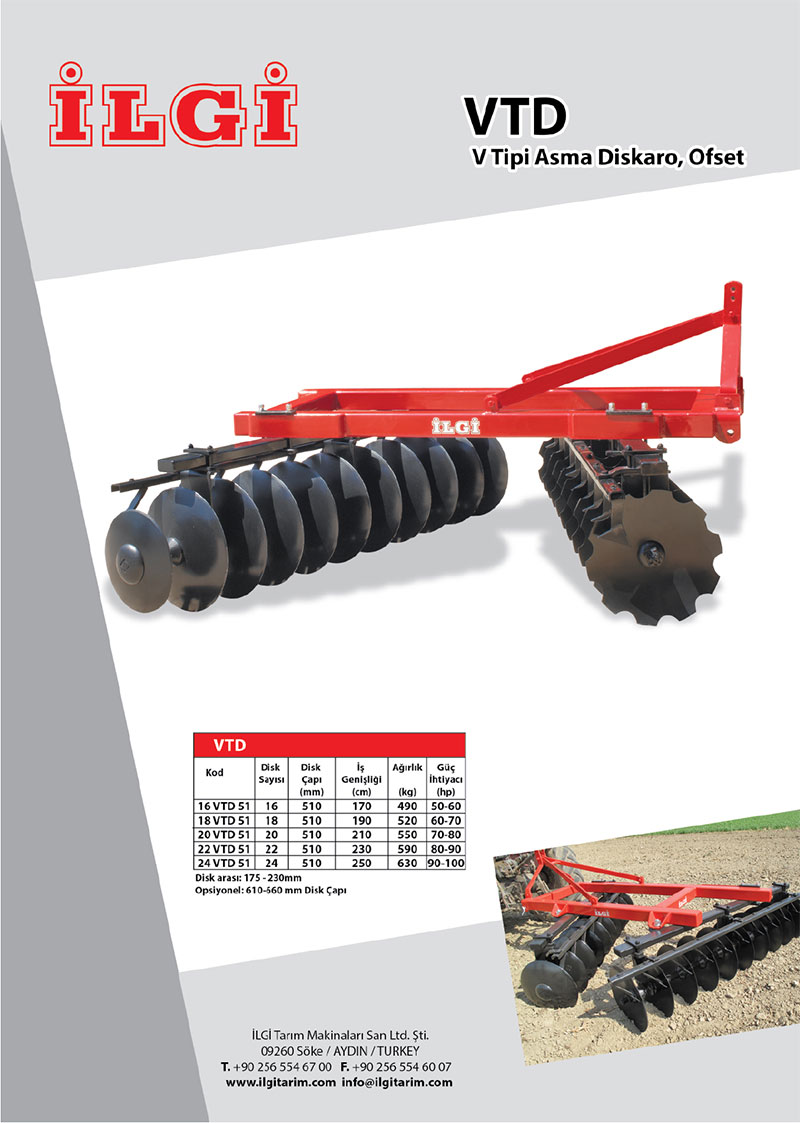

Model | Number of Discs | Disc Diameter(mm) | Working Width (cm) | Transport Width (cm) | Weight (kg) | Power Requirement (HP) |
---|---|---|---|---|---|---|
16 VTD 51 | 16 | 510 | 170 | 490 | 490 | 50 - 60 |
18 VTD 51 | 18 | 510 | 190 | 520 | 520 | 60 - 70 |
20 VTD 51 | 20 | 510 | 210 | 550 | 550 | 70 - 80 |
22 VTD 51 | 22 | 510 | 230 | 590 | 590 | 80 - 90 |
24 VTD 51 | 24 | 510 | 230 | 590 | 590 | 90 - 100 |
