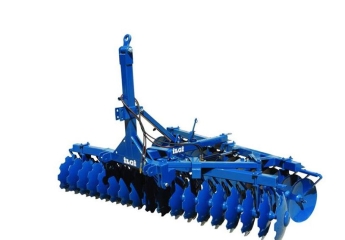

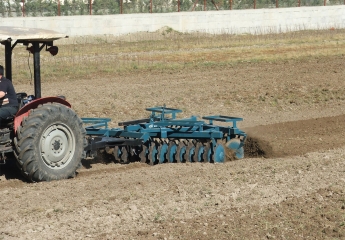

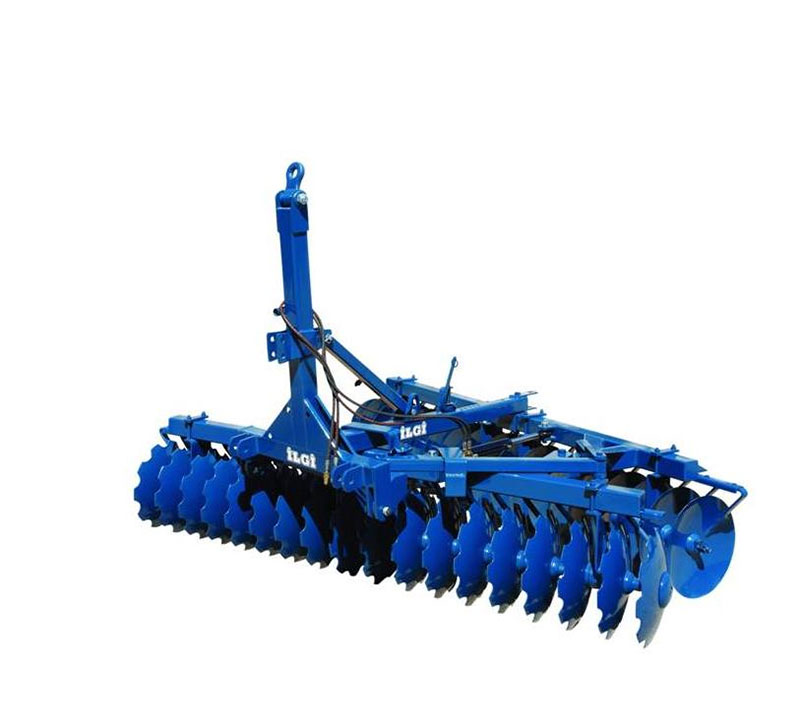

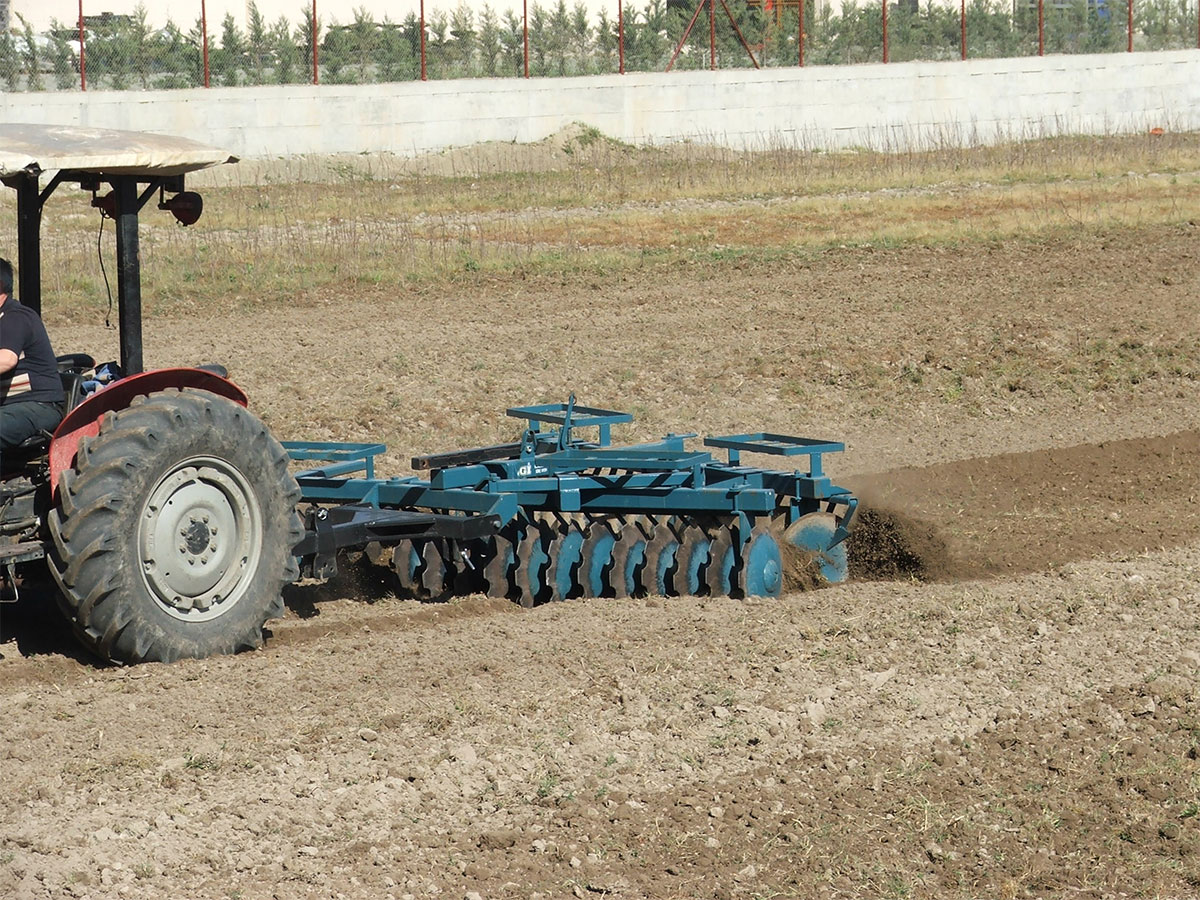

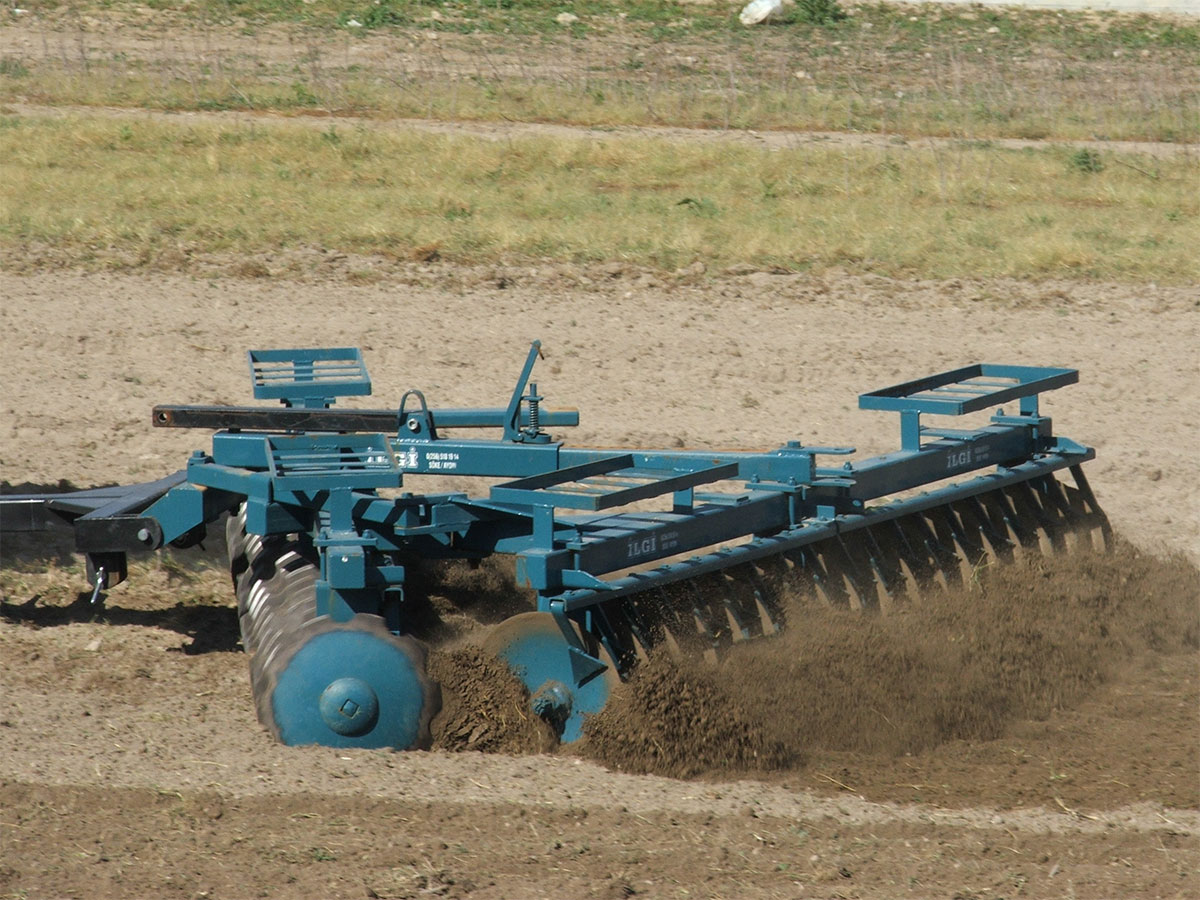

The trailed offset disc harrow CHD is used for secondary soil cultivation, stubble shredding and mixing, and for mixing and cultivation in orchards. It is a practical, easy-to-use product that can meet the farmer's needs in other soil operations. It can be used for mixing discarded manure with the soil, for weed control, the processing of tree spaces in orchards, and for the preparation of the seedbed before planting.
A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions.

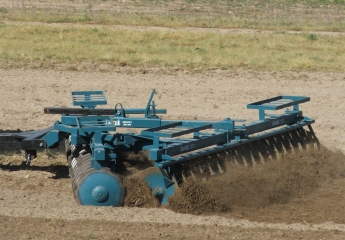

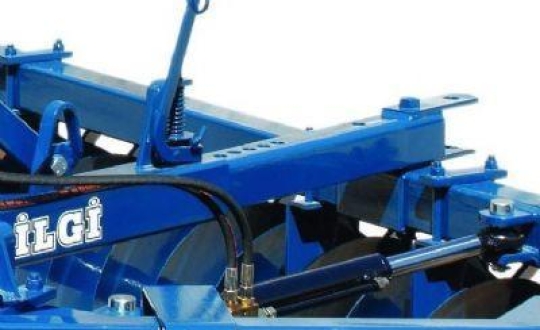

The direction angle can be set at up to 19 degrees and affects the working depth, tilting, and shredding properties of the discs. It can be easily adjusted using the multi-hole mechanism on the chassis. The direction angle can be adjusted mechanically or hydraulically.

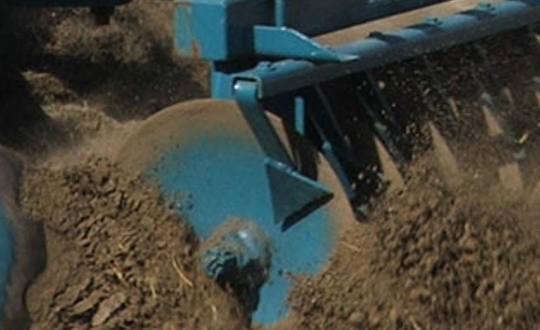

Special production scrapers are included with each disc and prevent residue by scraping the discs during soil cultivation. The distance between the scrapers and the discs can be set as desired or adjusted for wear.

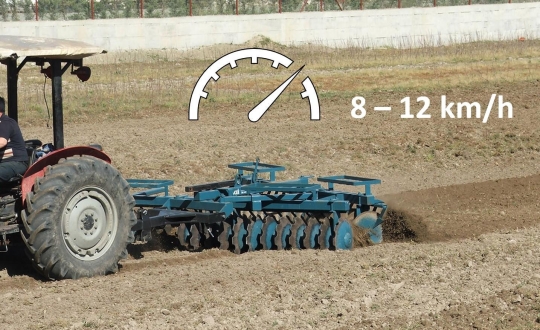

Its 8-12 km/h operating speed provides maximum efficiency with the minimum amount of time.

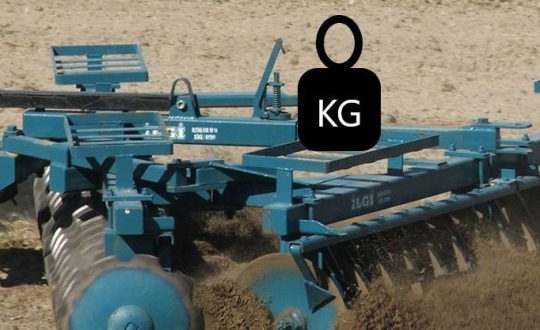

In cases where the desired working depth cannot be reached in heavier soil conditions, the working depth can be increased by adding additional weight to the weight baskets on the chassis.
Maintenance- and lubrication-free, long-lasting, robust roller bearings.
Welded disc arms that are resistant to tough conditions and strong impacts
| Model | Number of Discs | Disc Diameter (mm) | Working Width (cm) | Transport Width (cm) | Weight (kg) | Power Requirement (HP) |
|---|---|---|---|---|---|---|
| 24 CHD 46 | 24 | 460 | 200 | 230 | 680 | 50 - 70 |
| 28 CHD 46 | 28 | 460 | 235 | 265 | 745 | 60 - 80 |
| 32 CHD 46 | 32 | 460 | 270 | 300 | 810 | 70 - 90 |
| 36 CHD 46 | 36 | 460 | 305 | 335 | 885 | 80 - 100 |
| 40 CHD 46 | 40 | 460 | 340 | 375 | 965 | 90 - 110 |
| 44 CHD 46 | 44 | 460 | 375 | 405 | 1050 | 100 - 120 |
| 48 CHD 46 | 48 | 460 | 410 | 440 | 1145 | 120 - 140 |
